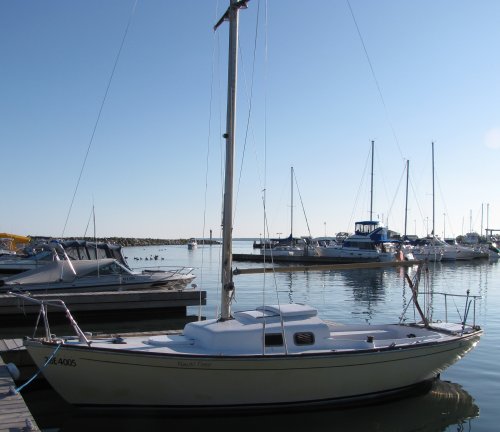

HUGHES 24
Built by Hughes Boatworks (CAN)
• Designed by William Shaw
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
First Built:
1966
Dimensions
Length Overall (LOA):
7.47 m
Length Waterline (LWL):
5.64 m
Beam:
2.31 m
Draft (Max):
1.60 m
Draft (Min):
0.84 m
Weight & Ballast
Displacement:
1,724 kg
Ballast:
669 kg
Sail Plan
Foresail Area:
11.69 m²
Mainsail Area:
13.22 m²
Sail Area:
24.91 m²
Sail Area (reported):
24.90 m²
I (Fore Triangle Height):
8.69 m
J (Fore Triangle Base):
2.69 m
P (Mainsail Hoist):
7.54 m
E (Boom Length):
3.51 m
Est. Forestay Length:
9.10 m
Engine & Systems
Performance Ratios
Hull Speed:
5.76 knots
SA/Displacement (Calc):
17.67
SA/Displacement (Reported):
17.66
Ballast/Disp Ratio:
38.82%
Displacement/Length:
267.93
Comfort Ratio:
19.47
Capsize Screening:
1.95
S-Number:
2.07
Immersion:
89 kg/cm
Notes
It's very likely that this yacht came from the same molds as those used to build the NUTMEG 24, originally by Tanzer Industries. Neither the NUTMEG 24 nor the HUGHES 24 were produced in great numbers. Some time later, it is thought that molds were modified to build the HUGHES 25 which proved to be far more popular.
