HUGHES 25

Built by Hughes Boatworks Ltd.(CAN) • Designed by Howard Hughes

Help improve this yacht's listing by uploading your own images.

General Information

Hull Type: Fin w/spade rudder

Rigging Type: Masthead Sloop

First Built: 1968

Dimensions

Length Overall (LOA): 7.67 m

Length Waterline (LWL): 5.79 m

Beam: 2.29 m

Draft (Max): 0.99 m

Weight & Ballast

Displacement: 1,588 kg

Ballast: 726 kg

Sail Plan

Foresail Area: 12.19 m²

Mainsail Area: 12.85 m²

Sail Area: 25.04 m²

Sail Area (reported): 25.08 m²

I (Fore Triangle Height): 9.60 m

J (Fore Triangle Base): 2.54 m

P (Mainsail Hoist): 8.43 m

E (Boom Length): 3.05 m

Est. Forestay Length: 9.93 m

Engine & Systems

Performance Ratios

Hull Speed: 5.84 knots

SA/Displacement (Calc): 18.76

SA/Displacement (Reported): 18.79

Ballast/Disp Ratio: 45.71%

Displacement/Length: 227.80

Comfort Ratio: 17.71

Capsize Screening: 1.98

S-Number: 2.57

Immersion: 91 kg/cm

Notes

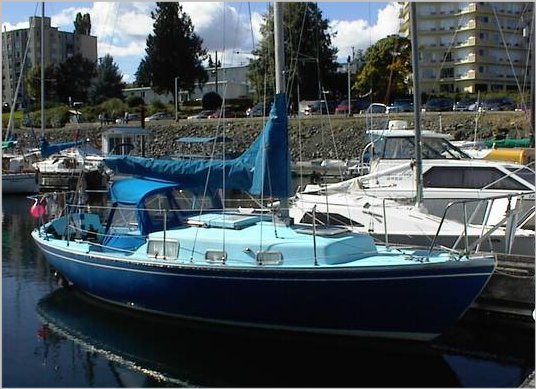

It is thought that this boat derived from the NUTMEG 24, designed by William Shaw (1964). Despite the reverse transom, fin keel with spade rudder, the basic hull shape seems strikingly similar. At about this time, Hughes Boatworks acquired the tooling from Tanzer Industries, the original builder of NUTMEG 24. Little notice has been made of this since the NUTMEG/HUGHES 24 were not built in great numbers. The HUGHES 25, on the other hand, proved to be a very popular model. (Thanks to Jack Gutter for additional info. on this yacht, as well as the owner of the boat in the photo who wished to remain anonymous.)
