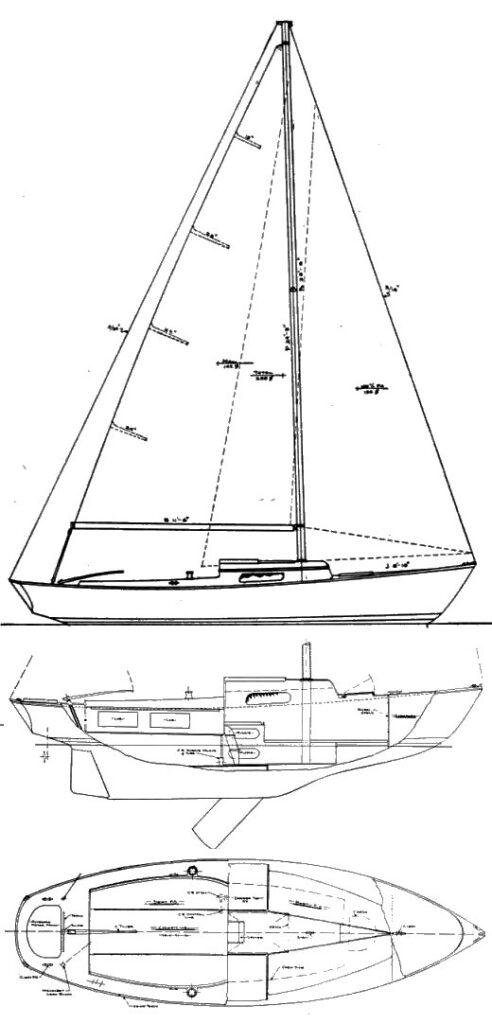

NUTMEG 24
Built by Tanzercraft (CAN)
• Designed by William Shaw
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
First Built:
1964
Dimensions
Length Overall (LOA):
7.47 m
Length Waterline (LWL):
5.64 m
Beam:
2.31 m
Draft (Max):
1.60 m
Draft (Min):
0.84 m
Weight & Ballast
Displacement:
1,724 kg
Ballast:
669 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
11.69 m²
Mainsail Area:
13.22 m²
Sail Area:
24.91 m²
Sail Area (reported):
24.90 m²
I (Fore Triangle Height):
8.69 m
J (Fore Triangle Base):
2.69 m
P (Mainsail Hoist):
7.54 m
E (Boom Length):
3.51 m
Est. Forestay Length:
9.10 m
Engine & Systems
Performance Ratios
Hull Speed:
5.76 knots
SA/Displacement (Calc):
17.67
SA/Displacement (Reported):
17.66
Ballast/Disp Ratio:
38.82%
Displacement/Length:
267.93
Comfort Ratio:
19.47
Capsize Screening:
1.95
S-Number:
2.07
Immersion:
89 kg/cm
Notes
Based on an earlier design, ORIENTAL MERCY, (1955), then the SHAW 24, both of wood construction.
