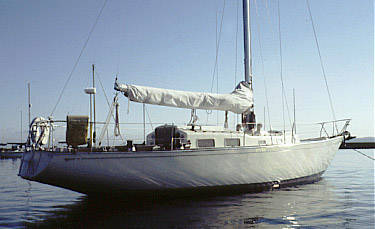

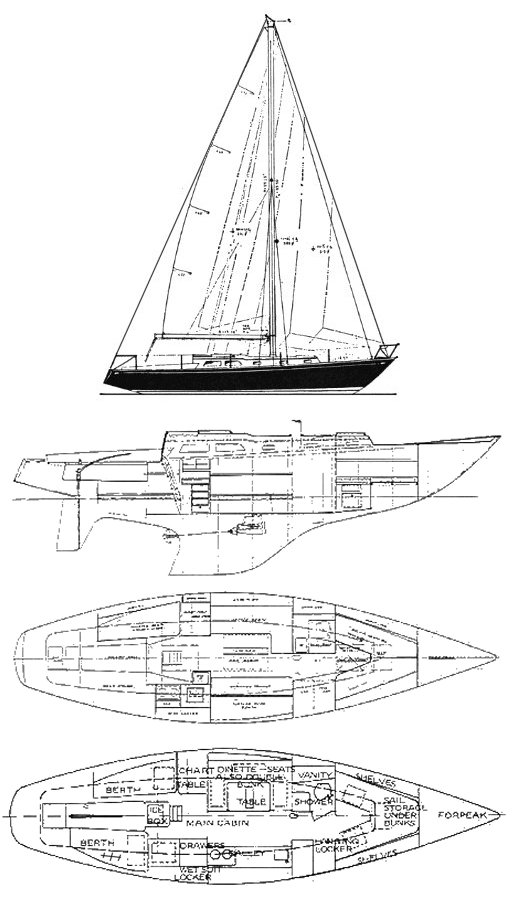

HUGHES 38-1
Built by Hughes Boatworks Ltd.(CAN)
• Designed by Sparkman & Stephens
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1967
Last Built:
1969
Dimensions
Length Overall (LOA):
11.53 m
Length Waterline (LWL):
8.23 m
Beam:
3.10 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
5,761 kg
Ballast:
2,767 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
29.30 m²
Mainsail Area:
24.95 m²
Sail Area:
54.25 m²
Sail Area (reported):
54.26 m²
I (Fore Triangle Height):
13.26 m
J (Fore Triangle Base):
4.42 m
P (Mainsail Hoist):
11.95 m
E (Boom Length):
4.18 m
Est. Forestay Length:
13.98 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Fuel Capacity:
45 L
Water Capacity:
151 L
Performance Ratios
Hull Speed:
6.96 knots
SA/Displacement (Calc):
17.22
SA/Displacement (Reported):
17.23
Ballast/Disp Ratio:
48.03%
Displacement/Length:
288.05
Comfort Ratio:
29.55
Capsize Screening:
1.75
S-Number:
1.86
Immersion:
175 kg/cm
Notes
Diesel power was available as an option.
