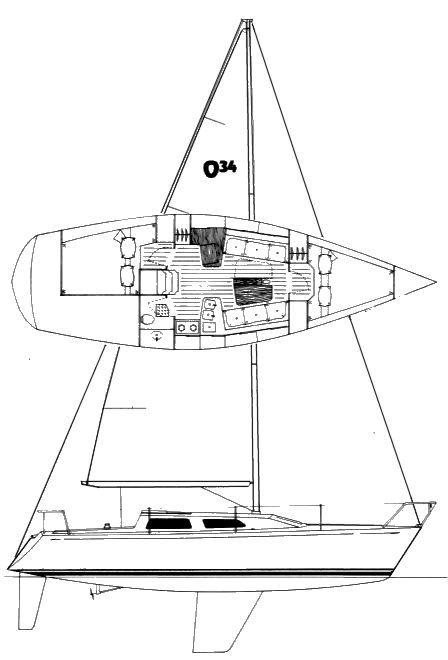

OLSON 34
Built by Pacific Boats Inc. (USA)
• Designed by George Olson
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1986
Last Built:
1986
Number Built:
1
Dimensions
Length Overall (LOA):
10.36 m
Length Waterline (LWL):
8.53 m
Beam:
3.30 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
3,856 kg
Ballast:
1,588 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
25.85 m²
Mainsail Area:
23.36 m²
Sail Area:
49.21 m²
Sail Area (reported):
53.42 m²
I (Fore Triangle Height):
12.80 m
J (Fore Triangle Base):
4.04 m
P (Mainsail Hoist):
11.35 m
E (Boom Length):
4.11 m
Est. Forestay Length:
13.42 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2GMF
Engine Power:
15 HP
Performance Ratios
Hull Speed:
7.09 knots
SA/Displacement (Calc):
20.41
SA/Displacement (Reported):
22.16
Ballast/Disp Ratio:
41.18%
Displacement/Length:
172.86
Comfort Ratio:
18.46
Capsize Screening:
2.13
S-Number:
3.48
Immersion:
193 kg/cm
Notes
Pacific Boats closed it's doors very shortly after this model was introduced and we are told that only one was built before the tooling went to Ericson Yachts where the majority were completed.
