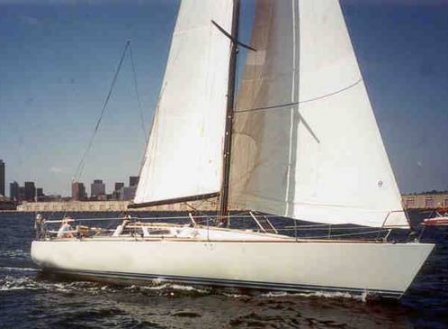

OLSON 40
Built by Pacific Boats Inc. (USA)
• Designed by George Olson
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1982
Last Built:
1986
Number Built:
30
Dimensions
Length Overall (LOA):
12.29 m
Length Waterline (LWL):
10.97 m
Beam:
3.45 m
Draft (Max):
1.98 m
Weight & Ballast
Displacement:
4,695 kg
Ballast:
2,495 kg
Ballast Type:
Lead

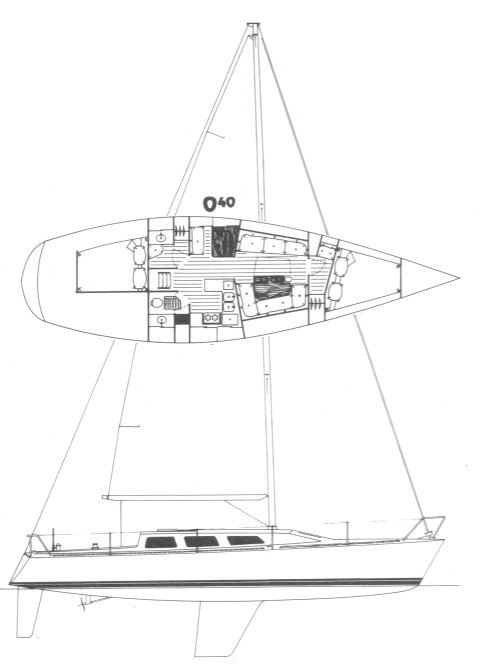

Sail Plan
Foresail Area:
37.49 m²
Mainsail Area:
29.37 m²
Sail Area:
66.86 m²
Sail Area (reported):
66.89 m²
I (Fore Triangle Height):
15.62 m
J (Fore Triangle Base):
4.80 m
P (Mainsail Hoist):
13.48 m
E (Boom Length):
4.36 m
Est. Forestay Length:
16.34 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3HMF
Engine Power:
30 HP
Performance Ratios
Hull Speed:
8.04 knots
SA/Displacement (Calc):
24.33
SA/Displacement (Reported):
24.34
Ballast/Disp Ratio:
53.14%
Displacement/Length:
99.03
Comfort Ratio:
16.91
Capsize Screening:
2.08
S-Number:
5.41
Immersion:
260 kg/cm
Notes
Sailplans seem to vary and position of the mast must have been changed at least once meaning that rig dimension may not be consistent between boats.
