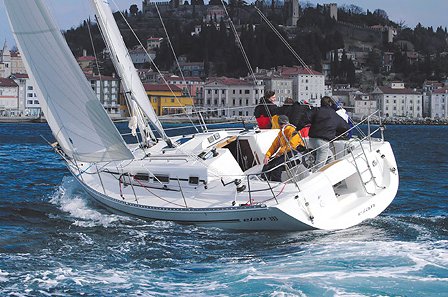

ELAN 333
Built by Elan Marine
• Designed by Robert Humphreys
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
1999
Last Built:
2005
Dimensions
Length Overall (LOA):
9.99 m
Length Waterline (LWL):
8.75 m
Beam:
3.46 m
Draft (Max):
1.90 m
Weight & Ballast
Displacement:
4,000 kg
Ballast:
1,520 kg

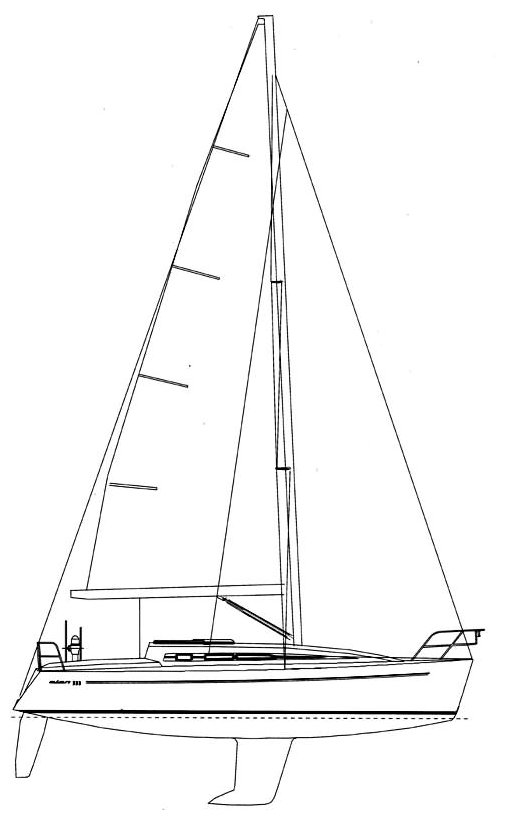

Sail Plan
Foresail Area:
23.72 m²
Mainsail Area:
27.45 m²
Sail Area:
51.17 m²
Sail Area (reported):
51.19 m²
I (Fore Triangle Height):
12.93 m
J (Fore Triangle Base):
3.67 m
P (Mainsail Hoist):
12.20 m
E (Boom Length):
4.50 m
Est. Forestay Length:
13.44 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2 GM 20
Engine Power:
18 HP
Fuel Capacity:
83 L
Water Capacity:
189 L
Performance Ratios
Hull Speed:
7.18 knots
SA/Displacement (Calc):
20.72
SA/Displacement (Reported):
20.72
Ballast/Disp Ratio:
38.00%
Displacement/Length:
166.35
Comfort Ratio:
17.91
Capsize Screening:
2.20
S-Number:
3.61
Immersion:
208 kg/cm
Notes
According to the builder, the ELAN 333 was one of their most popular models.
