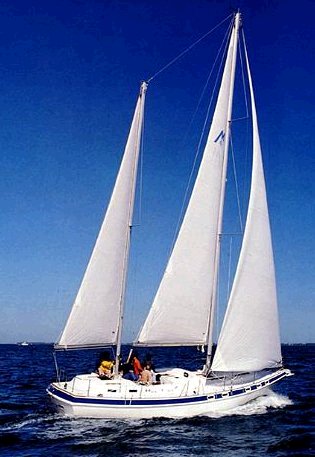

MORGAN OUT ISLAND 416
Built by Morgan Yachts (USA)
• Designed by Charles Morgan
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Ketch
First Built:
1981
Last Built:
1985
Dimensions
Length Overall (LOA):
12.57 m
Length Waterline (LWL):
10.36 m
Beam:
4.22 m
Draft (Max):
1.27 m
Max Height:
18.29 m
Weight & Ballast
Displacement:
12,247 kg
Ballast:
4,082 kg
Ballast Type:
Lead

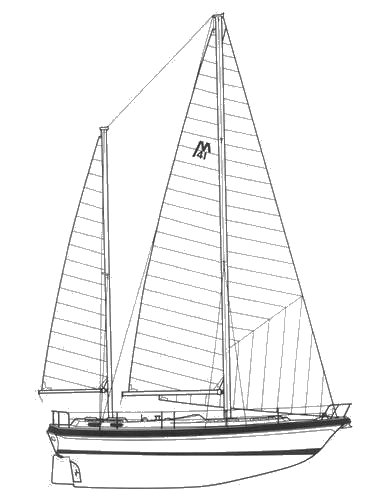

Sail Plan
Foresail Area:
38.32 m²
Mainsail Area:
28.99 m²
Sail Area:
67.31 m²
Sail Area (reported):
81.48 m²
I (Fore Triangle Height):
16.76 m
J (Fore Triangle Base):
4.57 m
P (Mainsail Hoist):
14.63 m
E (Boom Length):
3.96 m
PY (Mizzen Hoist):
10.36 m
EY (Mizzen Boom):
2.74 m
Est. Forestay Length:
17.38 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-154
Engine Power:
62 HP
Performance Ratios
Hull Speed:
7.81 knots
SA/Displacement (Calc):
12.93
SA/Displacement (Reported):
15.65
Ballast/Disp Ratio:
33.33%
Displacement/Length:
306.68
Comfort Ratio:
34.89
Capsize Screening:
1.85
S-Number:
1.37
Immersion:
300 kg/cm
Notes
Replacing the MORGAN OUT ISLAND 415, this version, (cutter or ketch) has signifcantly greater sail area.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
