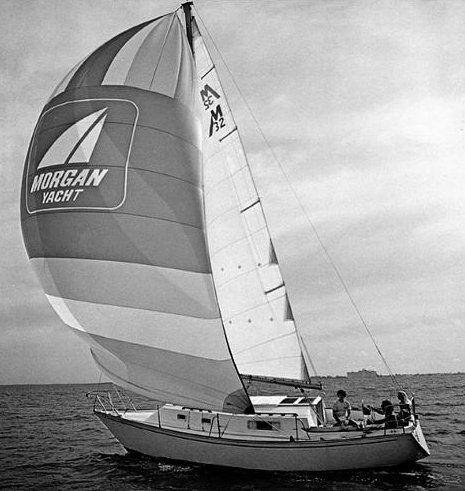

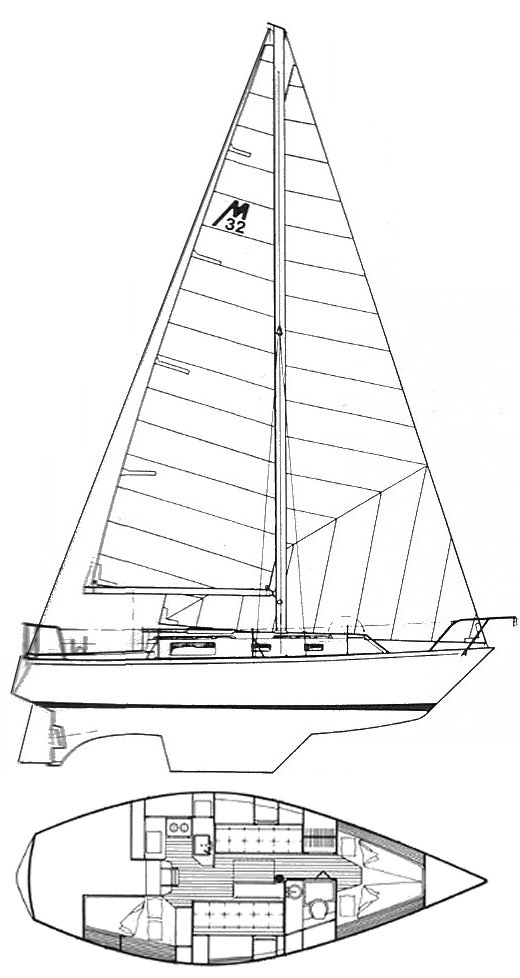

MORGAN 32
Built by Morgan Yachts (USA)
• Designed by Ted Brewer/Jack Corey
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1980
Last Built:
1986
Dimensions
Length Overall (LOA):
9.73 m
Length Waterline (LWL):
7.62 m
Beam:
3.51 m
Draft (Max):
1.62 m
Max Height:
13.92 m
Weight & Ballast
Displacement:
4,990 kg
Ballast:
1,814 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
25.70 m²
Mainsail Area:
20.07 m²
Sail Area:
45.76 m²
Sail Area (reported):
45.80 m²
I (Fore Triangle Height):
12.65 m
J (Fore Triangle Base):
4.06 m
P (Mainsail Hoist):
10.97 m
E (Boom Length):
3.66 m
Est. Forestay Length:
13.29 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2GM20
Engine Power:
20 HP
Fuel Capacity:
102 L
Water Capacity:
132 L
Performance Ratios
Hull Speed:
6.70 knots
SA/Displacement (Calc):
15.99
SA/Displacement (Reported):
16.00
Ballast/Disp Ratio:
36.36%
Displacement/Length:
314.29
Comfort Ratio:
24.28
Capsize Screening:
2.07
S-Number:
1.57
Immersion:
183 kg/cm
Notes
Shoal draft: 4'/1.22m
