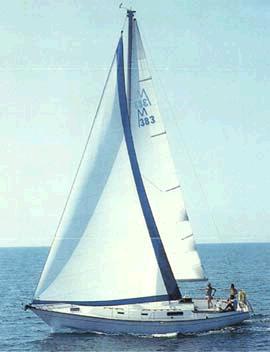

MORGAN 383/384
Built by Morgan Yachts (USA)
• Designed by Ted Brewer
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1982
Number Built:
200
Dimensions
Length Overall (LOA):
11.68 m
Length Waterline (LWL):
9.30 m
Beam:
3.66 m
Draft (Max):
1.52 m
Weight & Ballast
Displacement:
8,165 kg
Ballast:
3,084 kg
Sail Plan
Foresail Area:
37.74 m²
Mainsail Area:
25.66 m²
Sail Area:
63.41 m²
Sail Area (reported):
63.36 m²
I (Fore Triangle Height):
15.24 m
J (Fore Triangle Base):
4.95 m
P (Mainsail Hoist):
12.95 m
E (Boom Length):
3.96 m
Est. Forestay Length:
16.02 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-108
Performance Ratios
Hull Speed:
7.40 knots
SA/Displacement (Calc):
15.96
SA/Displacement (Reported):
15.95
Ballast/Disp Ratio:
37.78%
Displacement/Length:
283.22
Comfort Ratio:
30.94
Capsize Screening:
1.83
S-Number:
1.79
Immersion:
234 kg/cm
Notes
In 1982, the MORGAN 382 was renamed the MORGAN 383. It featured a taller rig, shorter boom and modified rudder. Some time later it became the 384, with mostly cosmetic changes. About 100 of each of these later models were built.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
