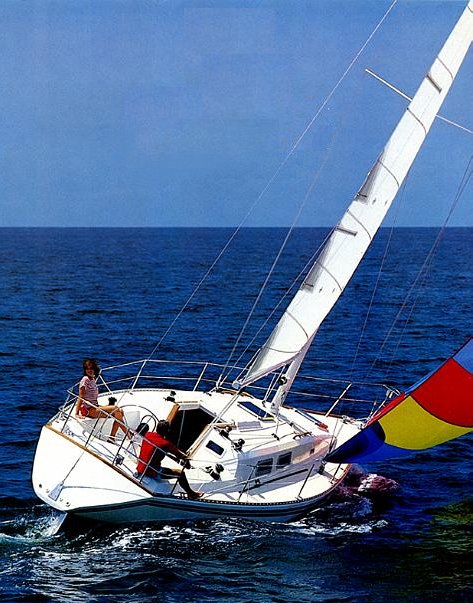

MORGAN 36-4/6
Built by Morgan Yachts (USA)
• Designed by Nelson/Marek
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1982
Dimensions
Length Overall (LOA):
10.97 m
Length Waterline (LWL):
8.97 m
Beam:
3.61 m
Draft (Max):
2.03 m
Weight & Ballast
Displacement:
5,398 kg
Ballast:
1,814 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
32.23 m²
Mainsail Area:
25.56 m²
Sail Area:
57.79 m²
Sail Area (reported):
57.79 m²
I (Fore Triangle Height):
14.76 m
J (Fore Triangle Base):
4.37 m
P (Mainsail Hoist):
12.90 m
E (Boom Length):
3.96 m
Est. Forestay Length:
15.39 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Power:
25 HP
Fuel Capacity:
114 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
7.27 knots
SA/Displacement (Calc):
19.16
SA/Displacement (Reported):
19.16
Ballast/Disp Ratio:
33.61%
Displacement/Length:
208.63
Comfort Ratio:
21.81
Capsize Screening:
2.08
S-Number:
2.84
Immersion:
222 kg/cm
Notes

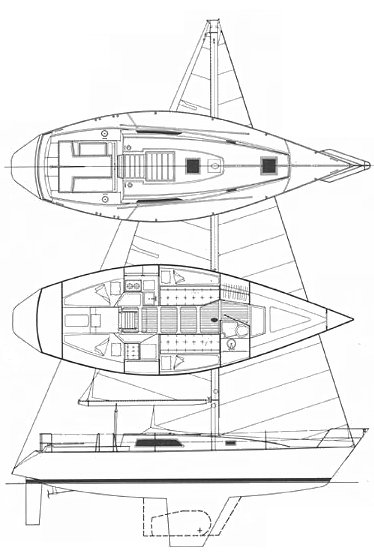

A keel/cb version was also available (as shown in drawing) as well as a more performance oriented version (with shorter coach roof and longer cockpit) sometimes called NEWSON-MAREK 36R.
