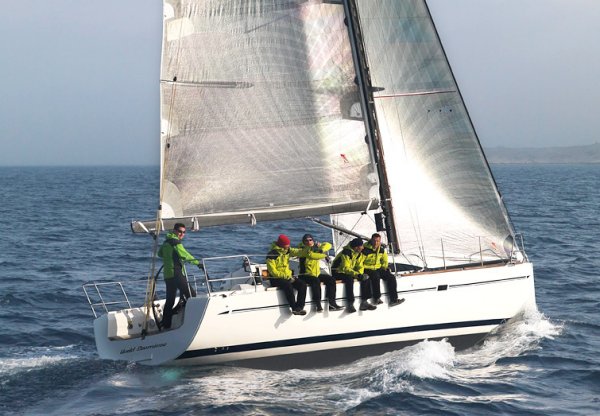

ELAN 380
Built by Elan (SLOV)
• Designed by Rob Humphreys
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
2008
Last Built:
2010
Dimensions
Length Overall (LOA):
11.34 m
Length Waterline (LWL):
10.63 m
Beam:
3.65 m
Draft (Max):
2.35 m
Weight & Ballast
Displacement:
7,000 kg
Ballast:
2,207 kg
Sail Plan
Foresail Area:
31.16 m²
Mainsail Area:
36.22 m²
Sail Area:
67.39 m²
Sail Area (reported):
67.35 m²
I (Fore Triangle Height):
14.98 m
J (Fore Triangle Base):
4.16 m
P (Mainsail Hoist):
14.61 m
E (Boom Length):
4.96 m
Est. Forestay Length:
15.55 m
Engine & Systems
Engine Type:
Diesel
Engine Power:
30 HP
Fuel Capacity:
110 L
Water Capacity:
348 L
Performance Ratios
Hull Speed:
7.91 knots
SA/Displacement (Calc):
18.79
SA/Displacement (Reported):
18.78
Ballast/Disp Ratio:
31.53%
Displacement/Length:
162.49
Comfort Ratio:
24.58
Capsize Screening:
1.93
S-Number:
3.43
Immersion:
266 kg/cm
Notes
Resin infusion. Solid glass below waterline. PVC foam hull side/balsa deck.
