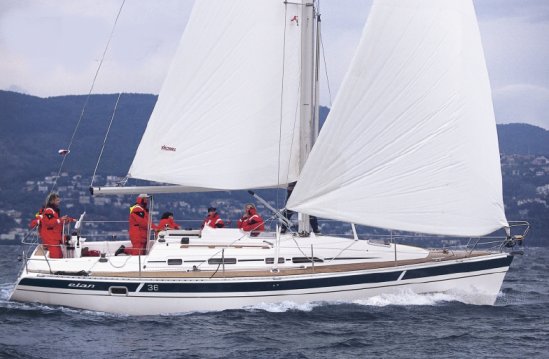

ELAN 36
Built by Elan Marine (SLOV)
• Designed by Rob Humphreys
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
1997
Dimensions
Length Overall (LOA):
11.00 m
Length Waterline (LWL):
9.50 m
Beam:
3.59 m
Draft (Max):
1.40 m
Weight & Ballast
Displacement:
5,511 kg
Ballast:
2,495 kg
Sail Plan
Foresail Area:
31.21 m²
Mainsail Area:
27.98 m²
Sail Area:
59.18 m²
Sail Area (reported):
59.18 m²
I (Fore Triangle Height):
14.45 m
J (Fore Triangle Base):
4.32 m
P (Mainsail Hoist):
12.60 m
E (Boom Length):
4.44 m
Est. Forestay Length:
15.08 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3GM
Engine Power:
30 HP
Fuel Capacity:
91 L
Water Capacity:
250 L
Performance Ratios
Hull Speed:
7.48 knots
SA/Displacement (Calc):
19.35
SA/Displacement (Reported):
19.35
Ballast/Disp Ratio:
45.27%
Displacement/Length:
179.11
Comfort Ratio:
21.54
Capsize Screening:
2.05
S-Number:
3.26
Immersion:
234 kg/cm
Notes
A verion with a shorter masthead rig was also available. (P=41.83)
