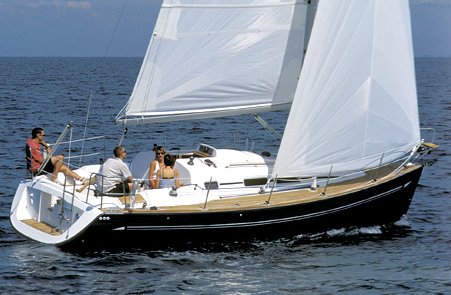

ELAN 31 (HUMPHREYS)
Built by Elan Marine (SVN)
• Designed by Rob Humphreys
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
2002
Dimensions
Length Overall (LOA):
9.20 m
Length Waterline (LWL):
8.21 m
Beam:
3.20 m
Draft (Max):
1.85 m
Weight & Ballast
Displacement:
3,800 kg
Ballast:
1,300 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
19.25 m²
Mainsail Area:
25.27 m²
Sail Area:
44.53 m²
Sail Area (reported):
54.44 m²
I (Fore Triangle Height):
11.74 m
J (Fore Triangle Base):
3.28 m
P (Mainsail Hoist):
11.46 m
E (Boom Length):
4.41 m
Est. Forestay Length:
12.19 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
2002
Fuel Capacity:
64 L
Water Capacity:
151 L
Performance Ratios
Hull Speed:
6.95 knots
SA/Displacement (Calc):
18.65
SA/Displacement (Reported):
22.81
Ballast/Disp Ratio:
34.21%
Displacement/Length:
191.48
Comfort Ratio:
20.24
Capsize Screening:
2.07
S-Number:
3.01
Immersion:
180 kg/cm
Notes
Shallow draft: 1.5m/4.92'
