O'DAY 23-1 (LIFT TOP)
Built by O'Day Corp. (USA)
• Designed by C. Raymond Hunt and Associates
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
First Built:
1972
Dimensions
Length Overall (LOA):
7.01 m
Length Waterline (LWL):
6.10 m
Beam:
2.42 m
Draft (Max):
1.65 m
Draft (Min):
0.61 m
Weight & Ballast
Displacement:
1,406 kg
Ballast:
567 kg
Sail Plan
Foresail Area:
12.40 m²
Mainsail Area:
10.37 m²
Sail Area:
22.76 m²
Sail Area (reported):
22.76 m²
I (Fore Triangle Height):
8.47 m
J (Fore Triangle Base):
2.93 m
P (Mainsail Hoist):
7.32 m
E (Boom Length):
2.83 m
Est. Forestay Length:
8.96 m
Engine & Systems
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calc):
18.49
SA/Displacement (Reported):
18.49
Ballast/Disp Ratio:
40.32%
Displacement/Length:
172.99
Comfort Ratio:
14.53
Capsize Screening:
2.18
S-Number:
3.24
Immersion:
101 kg/cm
Notes

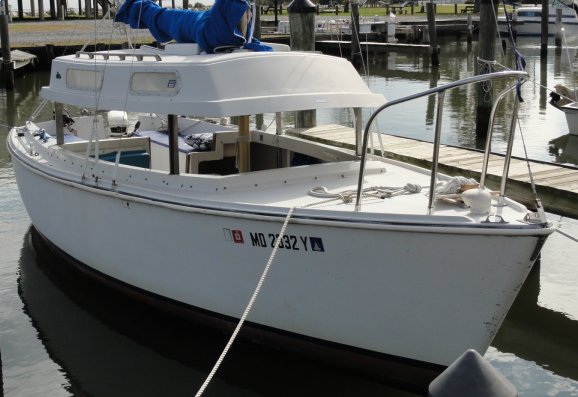

The first O'DAY 23 featured a large 'lift top' (see photo) that allowed the entire coach roof to be raised from the hull at once. The keel stepped mast stayed in place. This was a unique feature and somewhat controversial at the time.
