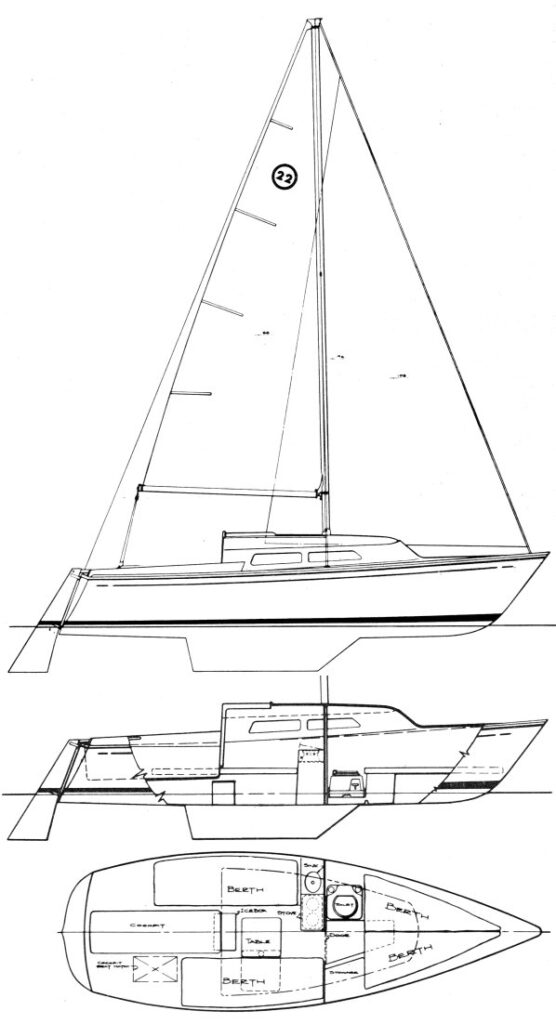

O'DAY 22 MH
Built by O'Day Corp. (USA)
• Designed by C. Raymond Hunt and Associates
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
First Built:
1973
Last Built:
1980
Dimensions
Length Overall (LOA):
6.61 m
Length Waterline (LWL):
5.77 m
Beam:
2.19 m
Draft (Max):
0.59 m
Headroom:
1.32 m
Max Height:
8.23 m
Weight & Ballast
Displacement:
907 kg
Ballast:
272 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
10.03 m²
Mainsail Area:
7.62 m²
Sail Area:
17.65 m²
Sail Area (reported):
17.65 m²
I (Fore Triangle Height):
7.32 m
J (Fore Triangle Base):
2.74 m
P (Mainsail Hoist):
6.25 m
E (Boom Length):
2.44 m
Est. Forestay Length:
7.81 m
Engine & Systems
Water Capacity:
19 L
Performance Ratios
Hull Speed:
5.83 knots
SA/Displacement (Calc):
19.19
SA/Displacement (Reported):
19.19
Ballast/Disp Ratio:
30.00%
Displacement/Length:
131.83
Comfort Ratio:
11.35
Capsize Screening:
2.28
S-Number:
3.98
Immersion:
87 kg/cm
Notes
Dimensions for masthead rig.(1973-1980)
