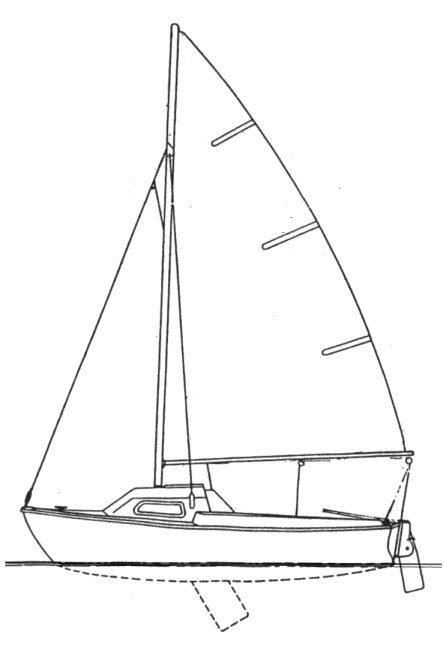

NEWPORT 16
Built by Lockley-Newport (USA)
• Designed by William Lapworth
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Swing Keel
Rigging Type:
Fractional Sloop
First Built:
1965
Dimensions
Length Overall (LOA):
4.75 m
Length Waterline (LWL):
4.17 m
Beam:
1.91 m
Draft (Max):
1.14 m
Draft (Min):
0.53 m
Weight & Ballast
Displacement:
340 kg
Ballast:
113 kg
Sail Plan
Foresail Area:
5.14 m²
Mainsail Area:
8.15 m²
Sail Area:
13.29 m²
Sail Area (reported):
12.73 m²
I (Fore Triangle Height):
4.65 m
J (Fore Triangle Base):
2.21 m
P (Mainsail Hoist):
5.49 m
E (Boom Length):
2.97 m
Est. Forestay Length:
5.15 m
Engine & Systems
Performance Ratios
Hull Speed:
4.95 knots
SA/Displacement (Calc):
27.77
SA/Displacement (Reported):
26.60
Ballast/Disp Ratio:
33.33%
Displacement/Length:
131.07
Comfort Ratio:
7.08
Capsize Screening:
2.75
S-Number:
5.13
Immersion:
55 kg/cm
Notes
The same hull as the earlier COLUMBIA 15 but with a cabin added. The molds were bought by Enterprise Yachts of FL in mid 1970's and then later came into the hands of Newport Boats which became Lockly Newport. It was later modified by enlarging the cabin top and renamed the NEPTUNE 16. Later still, the molds were sold to Gloucester Yachts were it became the GLOUCESTER 16.
