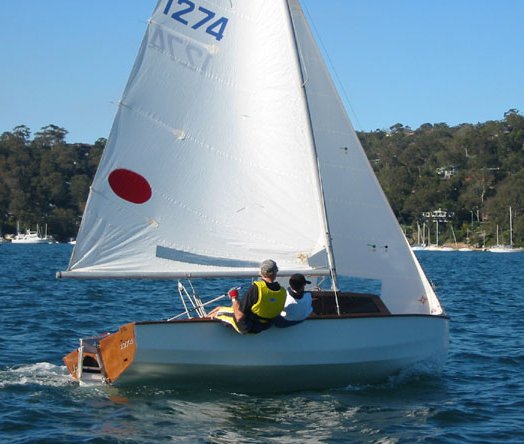

HARTLEY TS 16
Built by primarily amateur built
• Designed by Richard Hartley
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Centerboard (Trunk)
Rigging Type:
Fractional Sloop
First Built:
1956
Number Built:
1800
Dimensions
Length Overall (LOA):
5.00 m
Length Waterline (LWL):
4.27 m
Beam:
2.20 m
Draft (Max):
1.24 m
Draft (Min):
0.23 m
Weight & Ballast
Displacement:
360 kg

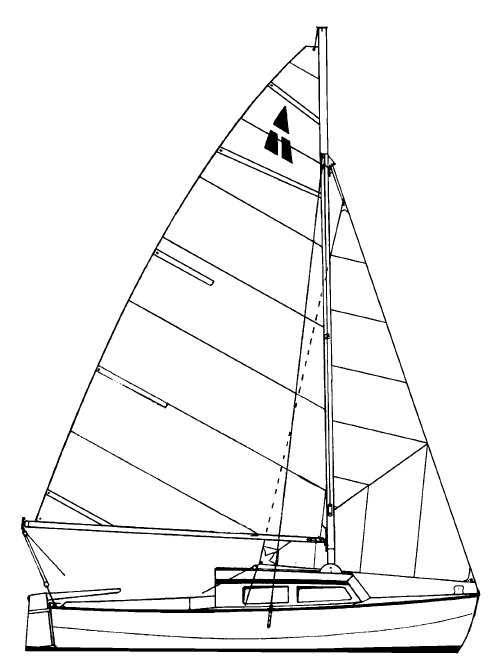

Sail Plan
Foresail Area:
4.09 m²
Mainsail Area:
9.71 m²
Sail Area:
13.80 m²
Sail Area (reported):
16.72 m²
I (Fore Triangle Height):
4.88 m
J (Fore Triangle Base):
1.68 m
P (Mainsail Hoist):
5.79 m
E (Boom Length):
3.35 m
Est. Forestay Length:
5.16 m
Engine & Systems
Performance Ratios
Hull Speed:
5.01 knots
SA/Displacement (Calc):
27.76
SA/Displacement (Reported):
33.64
Displacement/Length:
129.18
Comfort Ratio:
5.99
Capsize Screening:
3.12
S-Number:
5.18
Immersion:
64 kg/cm
Notes
Originally developed in New Zealand, The HARTLEY TS 16 is among the most popular 'trailer sailers' in Australia.
