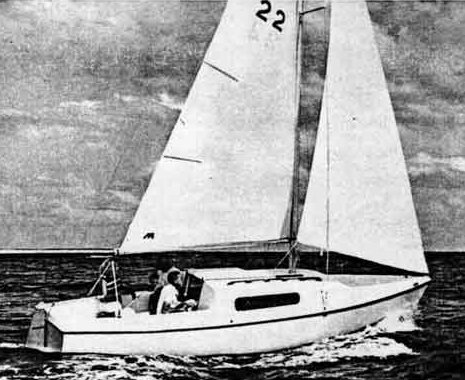

MORGAN 22
Built by Morgan Yachts (USA)
• Designed by Charles Morgan
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
First Built:
1968
Last Built:
1971
Dimensions
Length Overall (LOA):
6.53 m
Length Waterline (LWL):
6.20 m
Beam:
2.44 m
Draft (Max):
1.50 m
Draft (Min):
0.55 m
Weight & Ballast
Displacement:
1,225 kg
Ballast:
635 kg
Ballast Type:
Lead

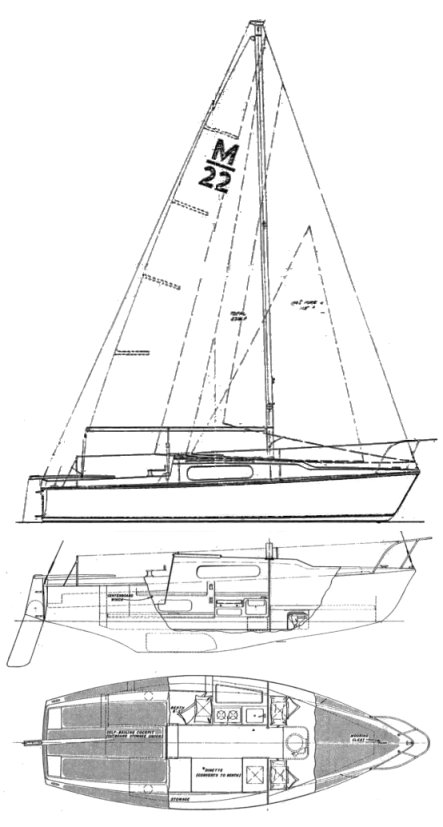

Sail Plan
Foresail Area:
10.66 m²
Mainsail Area:
11.46 m²
Sail Area:
22.12 m²
Sail Area (reported):
22.11 m²
I (Fore Triangle Height):
8.23 m
J (Fore Triangle Base):
2.59 m
P (Mainsail Hoist):
7.16 m
E (Boom Length):
3.20 m
Est. Forestay Length:
8.63 m
Engine & Systems
Performance Ratios
Hull Speed:
6.04 knots
SA/Displacement (Calc):
19.70
SA/Displacement (Reported):
19.69
Ballast/Disp Ratio:
51.85%
Displacement/Length:
143.45
Comfort Ratio:
12.66
Capsize Screening:
2.30
S-Number:
3.86
Immersion:
104 kg/cm
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
