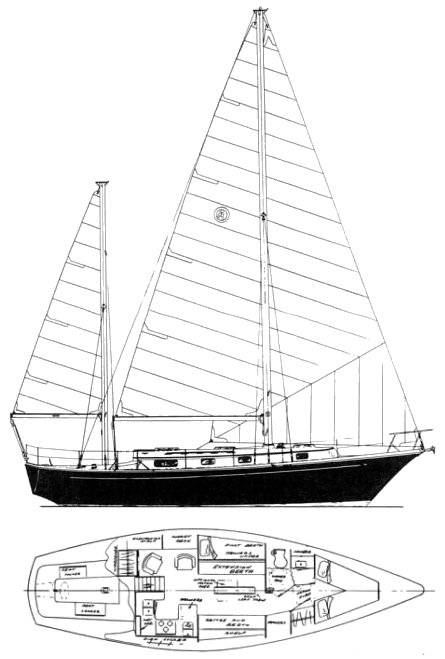

MISTRESS 39 MKII (ALLIED)
Built by Wright Boat Co.(USA)
• Designed by Arthur Edmunds
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Ketch
First Built:
1977
Dimensions
Length Overall (LOA):
11.77 m
Length Waterline (LWL):
9.08 m
Beam:
3.66 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
9,435 kg
Ballast:
3,583 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
30.15 m²
Mainsail Area:
26.27 m²
Sail Area:
56.42 m²
Sail Area (reported):
65.03 m²
I (Fore Triangle Height):
13.41 m
J (Fore Triangle Base):
4.50 m
P (Mainsail Hoist):
11.89 m
E (Boom Length):
4.42 m
PY (Mizzen Hoist):
7.01 m
EY (Mizzen Boom):
2.59 m
Est. Forestay Length:
14.15 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Power:
40 HP
Fuel Capacity:
530 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
7.31 knots
SA/Displacement (Calc):
12.90
SA/Displacement (Reported):
14.87
Ballast/Disp Ratio:
37.98%
Displacement/Length:
351.24
Comfort Ratio:
36.21
Capsize Screening:
1.75
S-Number:
1.12
Immersion:
228 kg/cm
Notes
Aft cockpit version of the MISTRESS 39 (ALLIED) with a clipper bow and other differences was introduced in 1975. (At this time the builders name was changed from Allied Boat Co. to the Wright Boat Co.) A rare version of this design with an extended stern was called the WRIGHT 40.
