MISTRESS 39 (ALLIED)
Built by Allied Boat Co. (USA)
• Designed by Arthur Edmunds
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Ketch
First Built:
1971
Last Built:
1978
Number Built:
60
Dimensions
Length Overall (LOA):
12.09 m
Length Waterline (LWL):
9.09 m
Beam:
3.66 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
9,435 kg
Ballast:
2,540 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
30.15 m²
Mainsail Area:
26.27 m²
Sail Area:
56.42 m²
Sail Area (reported):
65.50 m²
I (Fore Triangle Height):
13.41 m
J (Fore Triangle Base):
4.50 m
P (Mainsail Hoist):
11.89 m
E (Boom Length):
4.42 m
PY (Mizzen Hoist):
7.01 m
EY (Mizzen Boom):
2.59 m
Est. Forestay Length:
14.15 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
4-107
Engine Power:
37 HP
Fuel Capacity:
303 L
Water Capacity:
606 L
Performance Ratios
Hull Speed:
7.32 knots
SA/Displacement (Calc):
12.90
SA/Displacement (Reported):
14.97
Ballast/Disp Ratio:
26.92%
Displacement/Length:
349.83
Comfort Ratio:
35.83
Capsize Screening:
1.75
S-Number:
1.13
Immersion:
228 kg/cm
Notes

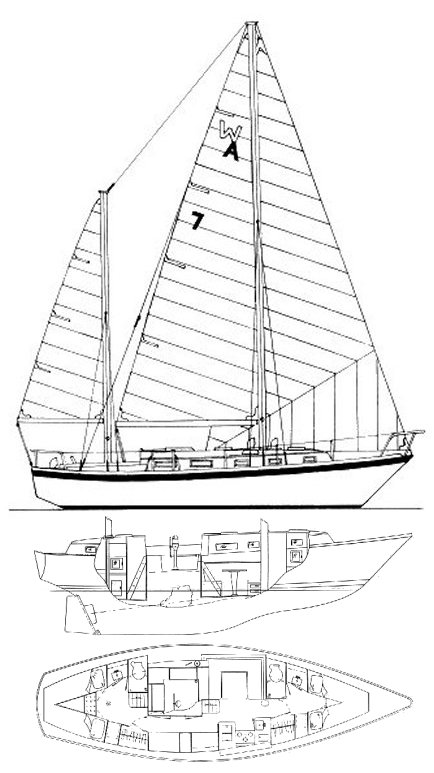

Available in aft (drawing top) and center cockpit (cutaway bottom) versions. When first introduced it was called the ALLIED 39 CRUISING KETCH. (Not to be confused with another ALLIED 39, from the same builder.)
