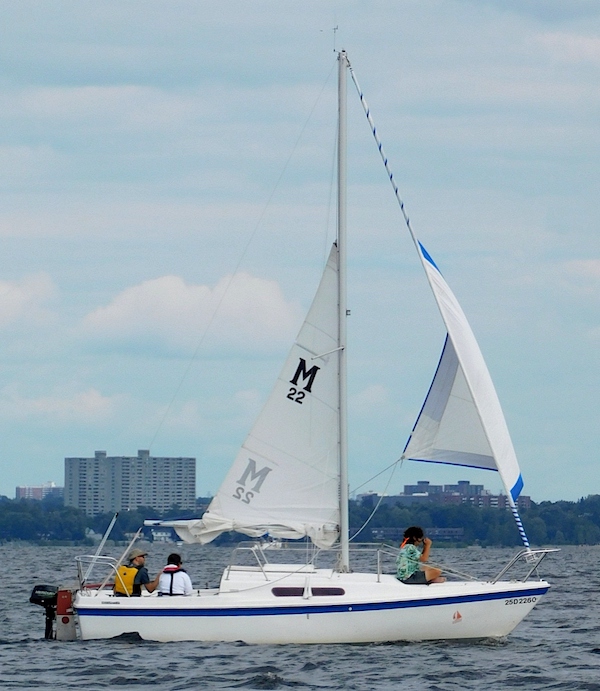

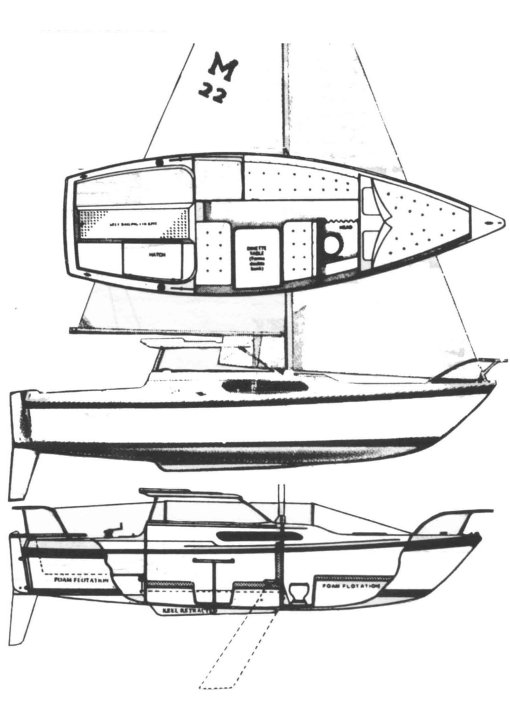

MACGREGOR 22
Built by Macgregor Yacht Corp. (USA)
• Designed by Roger Macgregor
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Swing Keel
Rigging Type:
Masthead Sloop
First Built:
1967
Last Built:
1975
Dimensions
Length Overall (LOA):
6.71 m
Length Waterline (LWL):
5.94 m
Beam:
2.23 m
Draft (Max):
1.68 m
Draft (Min):
0.30 m
Weight & Ballast
Displacement:
816 kg
Ballast:
227 kg
Sail Plan
Foresail Area:
10.81 m²
Mainsail Area:
9.10 m²
Sail Area:
19.91 m²
Sail Area (reported):
19.88 m²
I (Fore Triangle Height):
7.71 m
J (Fore Triangle Base):
2.80 m
P (Mainsail Hoist):
6.49 m
E (Boom Length):
2.80 m
Est. Forestay Length:
8.21 m
Engine & Systems
Performance Ratios
Hull Speed:
5.92 knots
SA/Displacement (Calc):
23.23
SA/Displacement (Reported):
23.19
Ballast/Disp Ratio:
27.78%
Displacement/Length:
108.37
Comfort Ratio:
9.67
Capsize Screening:
2.41
S-Number:
5.04
Immersion:
91 kg/cm
Notes
The MACGREGOR 22 is similar to the VENTURE 222.
