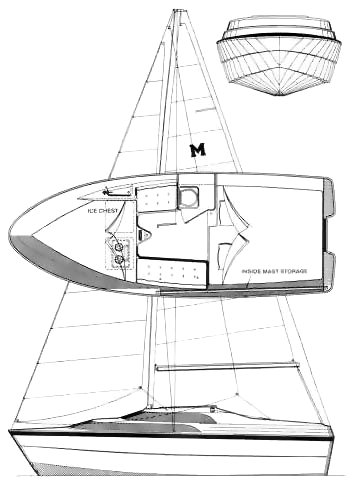

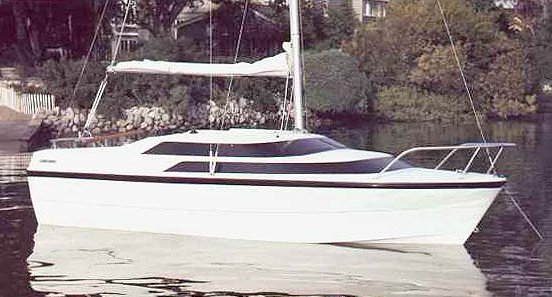

MACGREGOR 19
Built by Macgregor Yacht Corp. (USA)
• Designed by Roger Macgregor
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
First Built:
1992
Last Built:
1995
Dimensions
Length Overall (LOA):
5.74 m
Length Waterline (LWL):
5.18 m
Beam:
2.26 m
Draft (Max):
1.55 m
Draft (Min):
0.23 m
Weight & Ballast
Displacement:
930 kg
Ballast:
363 kg
Ballast Type:
Water
Sail Plan
Sail Area (reported):
15.51 m²
Engine & Systems
Engine Type:
Outboard
Engine Power:
8-40 HP
Fuel Capacity:
23 L
Performance Ratios
Hull Speed:
5.52 knots
SA/Displacement (Reported):
16.60
Ballast/Disp Ratio:
39.02%
Displacement/Length:
186.28
Comfort Ratio:
12.50
Capsize Screening:
2.34
Immersion:
80 kg/cm
Notes
One of this builders line of 'Sail/Power Hybrids'.
