MACGREGOR 65 PILOT HOUSE
Built by Macgregor Yacht Corp. (USA)
• Designed by Roger MacGregor
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Cutter
First Built:
1988
Last Built:
1995
Number Built:
75
Dimensions
Length Overall (LOA):
19.81 m
Length Waterline (LWL):
19.20 m
Beam:
3.56 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
14,515 kg
Ballast:
5,443 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
76.55 m²
Mainsail Area:
47.88 m²
Sail Area:
124.43 m²
Sail Area (reported):
124.12 m²
I (Fore Triangle Height):
18.90 m
J (Fore Triangle Base):
8.10 m
P (Mainsail Hoist):
16.54 m
E (Boom Length):
5.79 m
Est. Forestay Length:
20.56 m
Engine & Systems
Engine Type:
Diesel
Engine Power:
150 HP
Fuel Capacity:
946 L
Water Capacity:
852 L
Performance Ratios
Hull Speed:
10.64 knots
SA/Displacement (Calc):
21.35
SA/Displacement (Reported):
21.30
Ballast/Disp Ratio:
37.50%
Displacement/Length:
57.13
Comfort Ratio:
29.48
Capsize Screening:
1.47
S-Number:
5.95
Immersion:
469 kg/cm
Notes

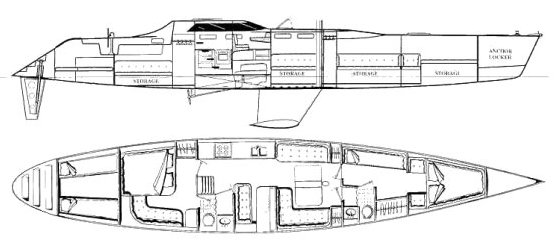

This second version of the MACGREGOR 65 was more of a performance cruiser than the earlier, more racing oriented model. It features a raised deckhouse with an inside steering station. The interior was completely redesigned. The hull was significantly reinforced and it was also available with a winged keel.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
