LAGUNA 33
Built by Laguna Yachts (USA)
• Designed by W. Shad Turner
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1986
Dimensions
Length Overall (LOA):
10.03 m
Length Waterline (LWL):
8.38 m
Beam:
3.25 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
4,350 kg
Ballast:
1,383 kg

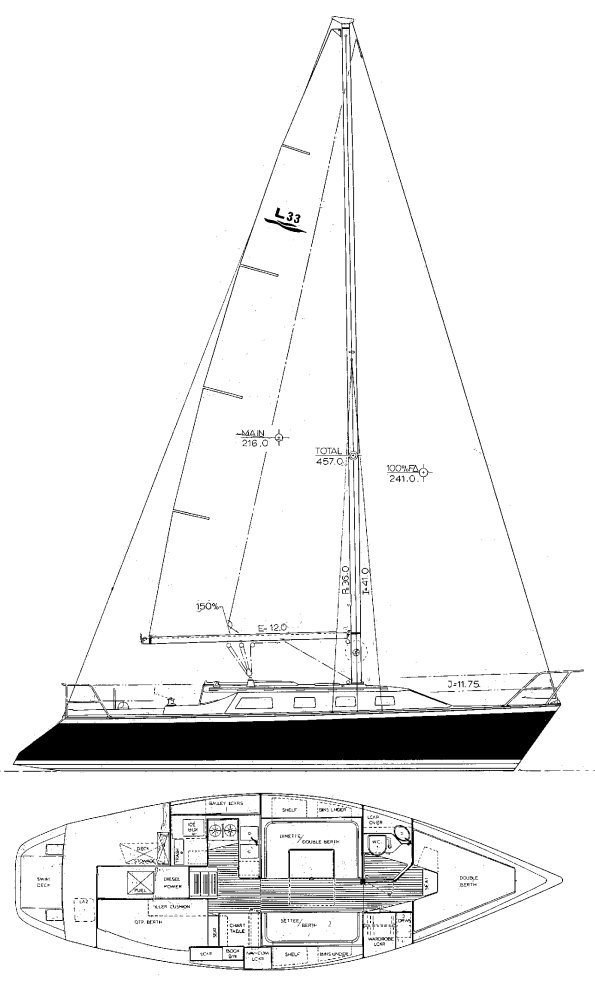

Sail Plan
Foresail Area:
22.38 m²
Mainsail Area:
20.07 m²
Sail Area:
42.45 m²
Sail Area (reported):
42.46 m²
I (Fore Triangle Height):
12.50 m
J (Fore Triangle Base):
3.58 m
P (Mainsail Hoist):
10.97 m
E (Boom Length):
3.66 m
Est. Forestay Length:
13.00 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Power:
23 HP
Water Capacity:
151 L
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Calc):
16.25
SA/Displacement (Reported):
16.25
Ballast/Disp Ratio:
31.80%
Displacement/Length:
205.86
Comfort Ratio:
21.74
Capsize Screening:
2.01
S-Number:
2.55
Immersion:
187 kg/cm
Notes
Based on the LAGUNA 30 but with extended reverse transom. Later this version probably became the CLASSIC 33, of which, only a few were built.
