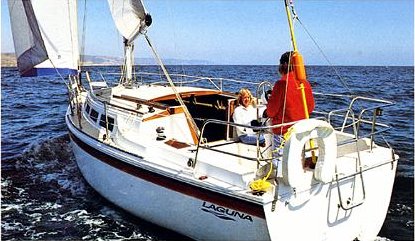

LAGUNA 30
Built by Laguna Yachts (USA)
• Designed by W. Shad Turner
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1983
Last Built:
1987
Dimensions
Length Overall (LOA):
9.13 m
Length Waterline (LWL):
7.92 m
Beam:
3.25 m
Draft (Max):
1.22 m
Headroom:
1.91 m
Max Height:
13.11 m
Weight & Ballast
Displacement:
3,946 kg
Ballast:
1,270 kg

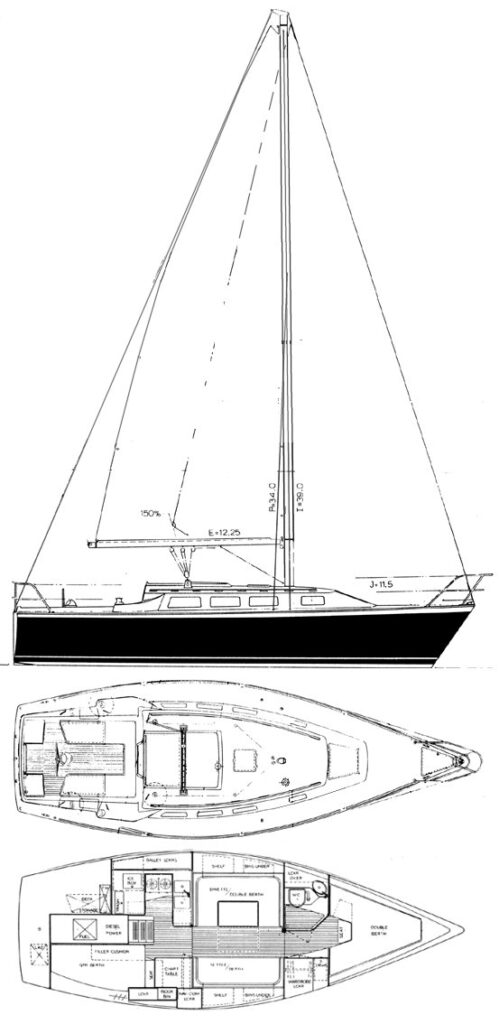

Sail Plan
Foresail Area:
20.83 m²
Mainsail Area:
19.35 m²
Sail Area:
40.18 m²
Sail Area (reported):
40.13 m²
I (Fore Triangle Height):
11.89 m
J (Fore Triangle Base):
3.51 m
P (Mainsail Hoist):
10.36 m
E (Boom Length):
3.73 m
Est. Forestay Length:
12.39 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Power:
18 HP
Fuel Capacity:
61 L
Water Capacity:
117 L
Performance Ratios
Hull Speed:
6.83 knots
SA/Displacement (Calc):
16.41
SA/Displacement (Reported):
16.39
Ballast/Disp Ratio:
32.18%
Displacement/Length:
220.98
Comfort Ratio:
21.12
Capsize Screening:
2.08
S-Number:
2.40
Immersion:
177 kg/cm
Notes
There was also a somewhat rare LAGUNA 33, based on the same hull but with a reverse transom. Later, this version became the CLASSIC 33. Neither of these extended versions were built in great numbers.
