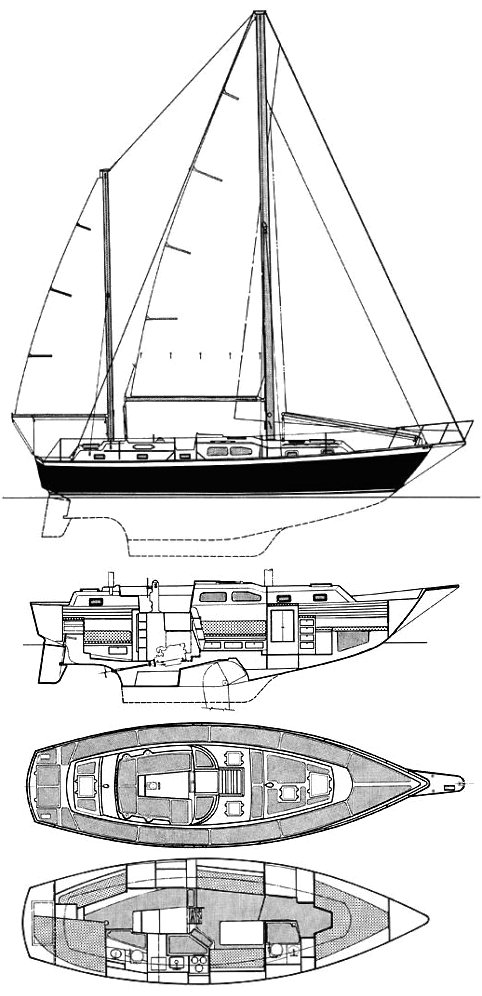

IRWIN 37-3
Built by Irwin Yachts (USA)
• Designed by Ted Irwin
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
First Built:
1976
Dimensions
Length Overall (LOA):
11.28 m
Length Waterline (LWL):
9.14 m
Beam:
3.51 m
Draft (Max):
1.22 m
Max Height:
14.02 m
Weight & Ballast
Displacement:
9,072 kg
Ballast:
3,538 kg
Sail Plan
Foresail Area:
34.34 m²
Mainsail Area:
24.14 m²
Sail Area:
58.48 m²
Sail Area (reported):
58.53 m²
I (Fore Triangle Height):
12.80 m
J (Fore Triangle Base):
5.36 m
P (Mainsail Hoist):
10.85 m
E (Boom Length):
4.45 m
Est. Forestay Length:
13.88 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-108
Fuel Capacity:
322 L
Water Capacity:
681 L
Performance Ratios
Hull Speed:
7.34 knots
SA/Displacement (Calc):
13.72
SA/Displacement (Reported):
13.73
Ballast/Disp Ratio:
39.00%
Displacement/Length:
330.69
Comfort Ratio:
37.23
Capsize Screening:
1.70
S-Number:
1.29
Immersion:
220 kg/cm
Notes
Available with keel centerboard and staysail ketch rig.
