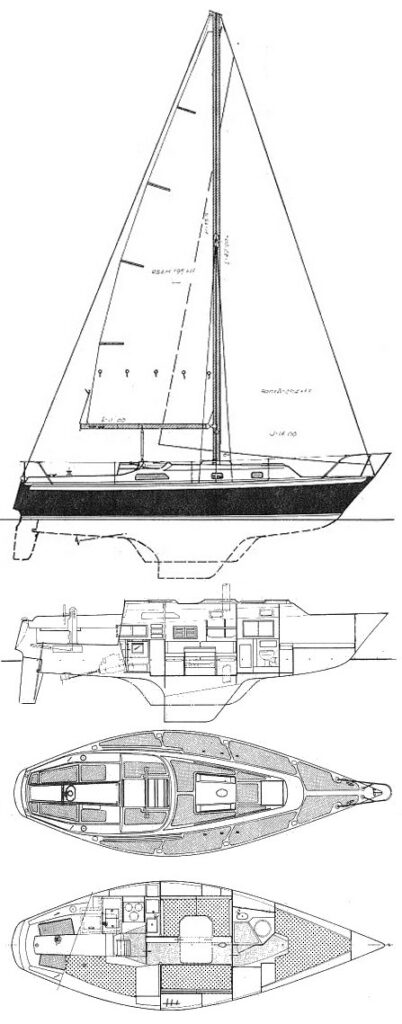

IRWIN 33 MKII
Built by Irwin Yachts (USA)
• Designed by Ted Irwin
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1976
Dimensions
Length Overall (LOA):
10.06 m
Length Waterline (LWL):
8.38 m
Beam:
3.40 m
Draft (Max):
1.68 m
Max Height:
14.10 m
Weight & Ballast
Displacement:
5,420 kg
Ballast:
1,905 kg
Sail Plan
Foresail Area:
27.31 m²
Mainsail Area:
18.14 m²
Sail Area:
45.45 m²
Sail Area (reported):
45.43 m²
I (Fore Triangle Height):
12.80 m
J (Fore Triangle Base):
4.27 m
P (Mainsail Hoist):
10.82 m
E (Boom Length):
3.35 m
Est. Forestay Length:
13.49 m
Engine & Systems
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Calc):
15.03
SA/Displacement (Reported):
15.02
Ballast/Disp Ratio:
35.15%
Displacement/Length:
256.52
Comfort Ratio:
25.46
Capsize Screening:
1.96
S-Number:
1.92
Immersion:
196 kg/cm
Notes
Shoal draft: 3.92'
