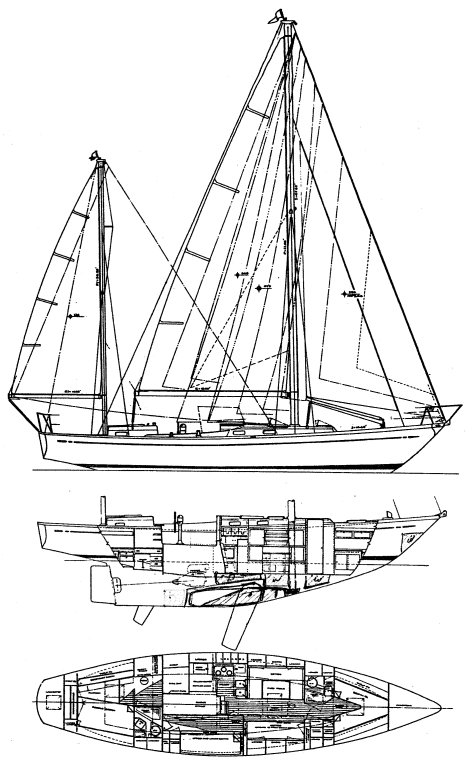

GRAMPIAN 46
Built by Grampian Marine
• Designed by William Tripp Jr.
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Yawl
First Built:
1969
Last Built:
1976
Number Built:
12
Dimensions
Length Overall (LOA):
14.02 m
Length Waterline (LWL):
10.06 m
Beam:
3.66 m
Draft (Max):
3.15 m
Draft (Min):
1.57 m
Weight & Ballast
Displacement:
11,340 kg
Ballast:
4,082 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
36.87 m²
Mainsail Area:
32.38 m²
Sail Area:
69.25 m²
Sail Area (reported):
81.85 m²
I (Fore Triangle Height):
14.51 m
J (Fore Triangle Base):
5.08 m
P (Mainsail Hoist):
12.50 m
E (Boom Length):
5.18 m
PY (Mizzen Hoist):
8.08 m
EY (Mizzen Boom):
3.12 m
Est. Forestay Length:
15.38 m
Engine & Systems
Performance Ratios
Hull Speed:
7.70 knots
SA/Displacement (Calc):
14.00
SA/Displacement (Reported):
16.55
Ballast/Disp Ratio:
36.00%
Displacement/Length:
310.56
Comfort Ratio:
38.26
Capsize Screening:
1.64
S-Number:
1.44
Immersion:
253 kg/cm
Notes
With the exception of the unique feature of tandem centerboards,(offered as an option) the GRAMPIAN 46 seems to be nearly the same design as the US 46.
