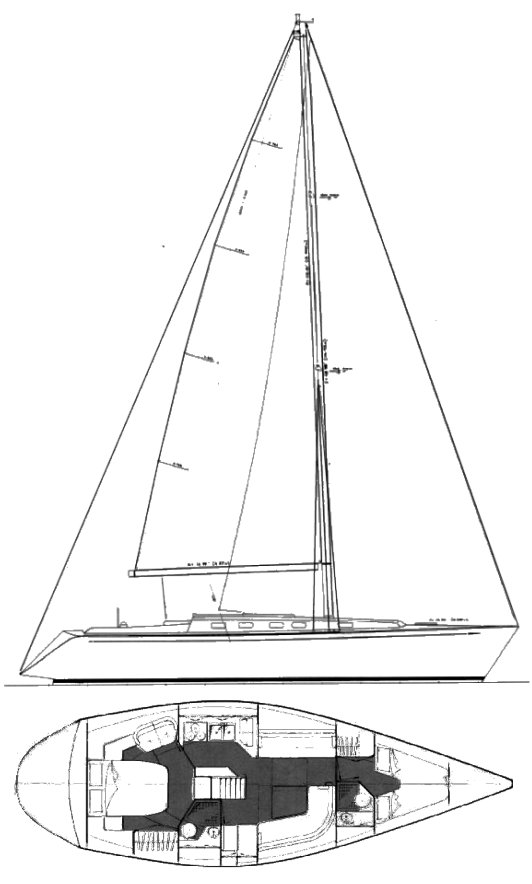

GARRETT 40 CR
Built by Garrett Marine
• Designed by Bruce Farr
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1983
Dimensions
Length Overall (LOA):
12.22 m
Length Waterline (LWL):
9.53 m
Beam:
4.04 m
Draft (Max):
2.29 m
Weight & Ballast
Displacement:
6,532 kg
Ballast:
3,221 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
31.30 m²
Mainsail Area:
26.51 m²
Sail Area:
57.82 m²
Sail Area (reported):
57.79 m²
I (Fore Triangle Height):
14.63 m
J (Fore Triangle Base):
4.28 m
P (Mainsail Hoist):
12.67 m
E (Boom Length):
4.18 m
Est. Forestay Length:
15.24 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Power:
33 HP
Performance Ratios
Hull Speed:
7.49 knots
SA/Displacement (Calc):
16.88
SA/Displacement (Reported):
16.87
Ballast/Disp Ratio:
49.31%
Displacement/Length:
210.65
Comfort Ratio:
21.02
Capsize Screening:
2.18
S-Number:
2.57
Immersion:
264 kg/cm
Notes
Several versions based on this hull design (#143)
