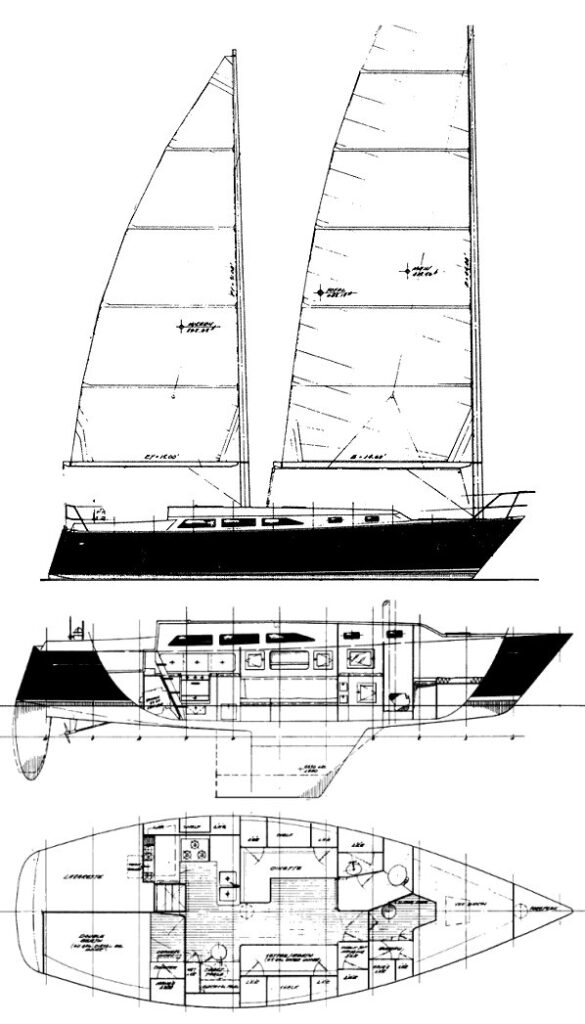

FREEDOM 36 CAT KETCH
Built by Tillotson Pearson Inc, (USA)
• Designed by Gary Mull
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Cat Ketch (unstayed)
First Built:
1985
Dimensions
Length Overall (LOA):
11.10 m
Length Waterline (LWL):
9.34 m
Beam:
3.81 m
Draft (Max):
1.83 m
Max Height:
16.46 m
Weight & Ballast
Displacement:
6,078 kg
Ballast:
2,508 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
63.36 m²
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
27 HP
Fuel Capacity:
151 L
Water Capacity:
246 L
Performance Ratios
Hull Speed:
7.42 knots
SA/Displacement (Reported):
19.41
Ballast/Disp Ratio:
41.27%
Displacement/Length:
208.17
Comfort Ratio:
22.14
Capsize Screening:
2.11
Immersion:
244 kg/cm
Notes
Shoal keel: Draft - 4.50' / 1.37m; Ballast - 6,500 lbs / 2,948 kg; Displacement - 14,370 lbs / 6,518 kg
