FREEDOM 33
Built by Tillotson Pearson Inc, (USA)
• Designed by J. Paris/Garry Hoyt
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Cat Ketch (unstayed)
First Built:
1979
Last Built:
1983
Dimensions
Length Overall (LOA):
10.59 m
Length Waterline (LWL):
9.14 m
Beam:
3.35 m
Draft (Max):
2.29 m
Draft (Min):
1.07 m
Weight & Ballast
Displacement:
5,443 kg
Ballast:
1,724 kg
Ballast Type:
Lead
Sail Plan
Mainsail Area:
28.80 m²
Sail Area:
28.80 m²
Sail Area (reported):
47.94 m²
P (Mainsail Hoist):
11.81 m
E (Boom Length):
4.88 m
PY (Mizzen Hoist):
9.30 m
EY (Mizzen Boom):
3.35 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2QM
Engine Power:
18 HP
Fuel Capacity:
95 L
Water Capacity:
201 L
Performance Ratios
Hull Speed:
7.34 knots
SA/Displacement (Calc):
9.50
SA/Displacement (Reported):
15.81
Ballast/Disp Ratio:
31.67%
Displacement/Length:
198.41
Comfort Ratio:
24.21
Capsize Screening:
1.93
Immersion:
211 kg/cm
Notes

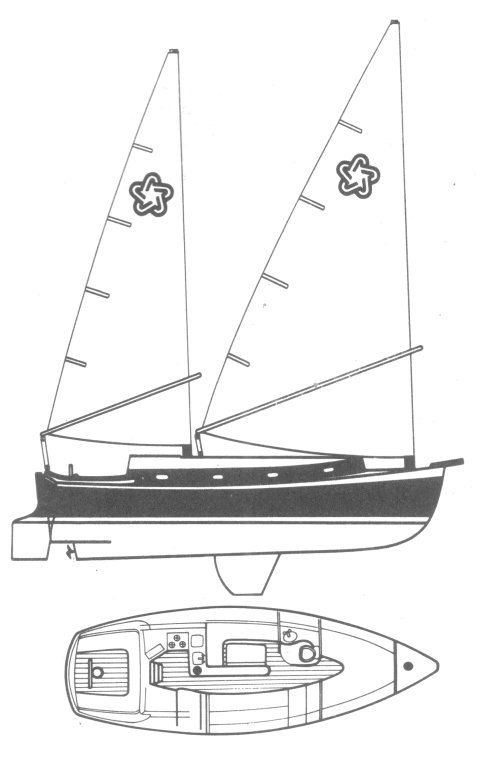

When introduced the FREEDOM 33 featured freestanding carbon spars, wrap-around/sleeved sails with wishbone type booms, (as shown here: The sleeved sails and wishbones were later abandoned for a more conventional sail attachment arrangement and standard booms.
