BAVARIA 35 EXCLUSIVE - Photo

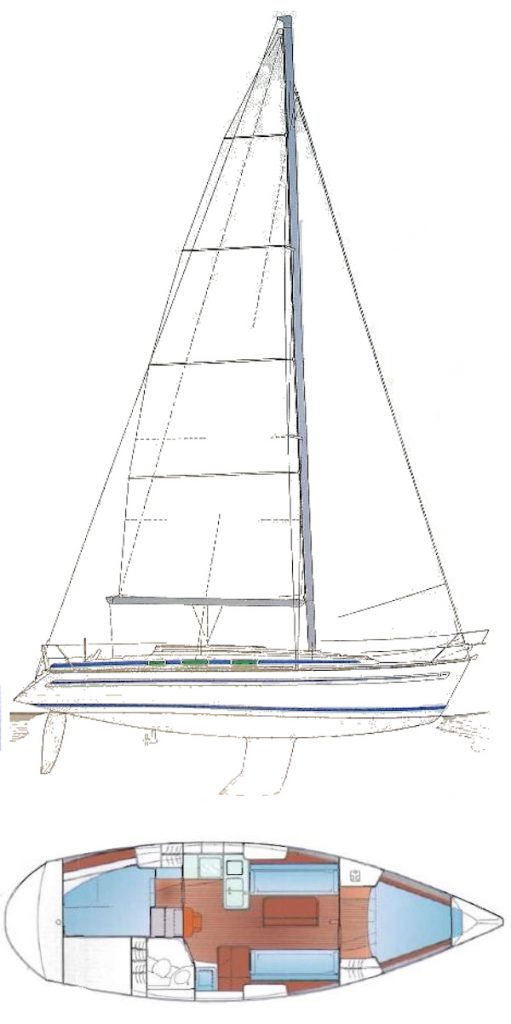

BAVARIA 35 EXCLUSIVE - Drawing

General Information

Hull Type: Fin w/spade rudder
Rigging Type: Fractional Sloop
Construction: FG
First Built: 1997
Last Built: 1999

Dimensions

Length Overall (LOA): 10.65 m
Length on Deck (LOD): 10.45 m
Length Waterline (LWL): 8.95 m
Beam: 3.45 m
Draft (Max): 1.70 m
Headroom: 1.85 m

Weight & Ballast

Displacement: 5,100 kg
Ballast: 1,800 kg

Sail Plan

Sail Area (reported): 71.50 m²

Engine & Systems

Engine Make: Volvo Penta
Engine Type: Diesel, Saildrive
Engine Model: MD 2030
Engine Power: 29 HP
Fuel Capacity: 150 L
Water Capacity: 300 L

Performance Ratios

On the numbers, Bavaria 35 Exclusive rates as light (D/L 198). Its comfort ratio of 22.1 is in the "coastal cruiser" band; its ballast/displacement ratio of 35.3% is in the "moderate" band.

Ratios use published displacement (often light ship) and reported sail area; see Sources & methodology.

Hull Speed: 7.26 knots
SA/Displacement (Reported): 24.62
Ballast/Disp Ratio: 35.29%

Ballast/Disp 35.3% — moderate. Lower than 74% of the 1766 monohulls between 9.6 m and 11.7 m in our catalogue. The share of the boat's weight that is ballast: a higher share generally means a stiffer boat that stands up better to its sail area.

Displacement/Length: 198.33

D/L 198 — light. Lower than 71% of the 1942 monohulls between 9.6 m and 11.7 m in our catalogue. Displacement relative to waterline length: low numbers mean a light boat that accelerates and planes easily, high numbers a heavy boat that carries its weight through a seaway.

Comfort Ratio: 22.11

Comfort ratio 22.1 — coastal cruiser. Lower than 71% of the 1941 monohulls between 9.6 m and 11.7 m in our catalogue. An estimate of motion comfort in waves from displacement, beam and length: higher values suggest a slower, gentler motion.

Capsize Screening: 2.02

Capsize screening 2.02 — above the guideline. Higher than 70% of the 1973 monohulls between 9.6 m and 11.7 m in our catalogue. A screening formula from beam and displacement: lower is better, and values under 2.0 are the common guideline for offshore boats.

Immersion: 212 kg/cm

Notes

Sail area:
