FREEDOM 28 CAT KETCH
Built by Tillotson Pearson Inc, (USA)
• Designed by Garry Hoyt/Jay Paris
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Cat Ketch (unstayed)
First Built:
1979
Dimensions
Length Overall (LOA):
8.63 m
Length Waterline (LWL):
7.85 m
Beam:
2.84 m
Draft (Max):
1.62 m
Draft (Min):
0.76 m
Headroom:
1.83 m
Weight & Ballast
Displacement:
3,175 kg
Ballast:
1,724 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
40.32 m²
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
15 HP
Fuel Capacity:
68 L
Water Capacity:
132 L
Performance Ratios
Hull Speed:
6.80 knots
SA/Displacement (Reported):
19.04
Ballast/Disp Ratio:
54.29%
Displacement/Length:
183.03
Comfort Ratio:
20.83
Capsize Screening:
1.95
Immersion:
153 kg/cm
Notes

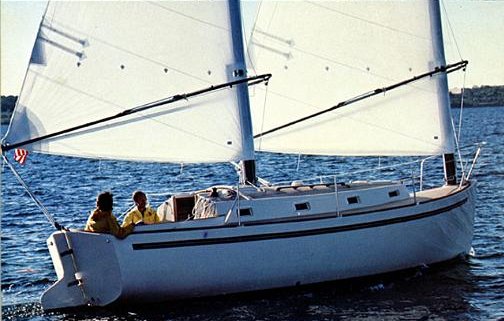

When introduced the FREEDOM 28 CAT KETCH featured free-standing carbon spars, wrap-around sails with wishbone type booms, (as shown here: The sleeved sails and wishbones were later abandoned for a more conventional sail attachment arrangement and standard booms.
