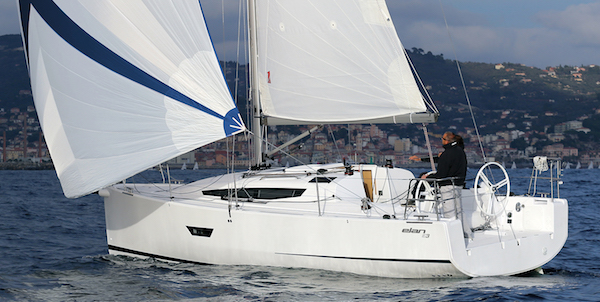

ELAN E3
Built by Elan Yachts
• Designed by Humphreys Yacht Design
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & dual rudders
Rigging Type:
Fractional Sloop
First Built:
2014
Dimensions
Length Overall (LOA):
9.25 m
Length Waterline (LWL):
8.71 m
Beam:
3.22 m
Draft (Max):
2.15 m
Max Height:
15.90 m
Weight & Ballast
Displacement:
3,690 kg
Ballast:
895 kg

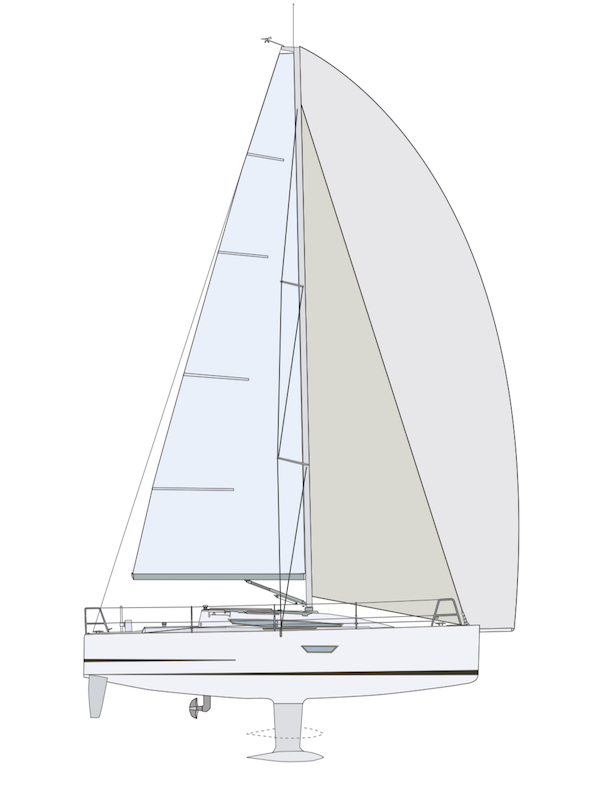

Sail Plan
Foresail Area:
21.94 m²
Mainsail Area:
24.88 m²
Sail Area:
46.82 m²
Sail Area (reported):
53.61 m²
I (Fore Triangle Height):
12.25 m
J (Fore Triangle Base):
3.58 m
P (Mainsail Hoist):
12.05 m
E (Boom Length):
4.13 m
Est. Forestay Length:
12.76 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Power:
18 HP
Fuel Capacity:
45 L
Water Capacity:
140 L
Performance Ratios
Hull Speed:
7.16 knots
SA/Displacement (Calc):
20.00
SA/Displacement (Reported):
22.90
Ballast/Disp Ratio:
24.25%
Displacement/Length:
155.57
Comfort Ratio:
18.70
Capsize Screening:
2.10
S-Number:
3.70
Immersion:
193 kg/cm
Notes
Formerly the Elan 320. Rebranded the E3 in 2014.
