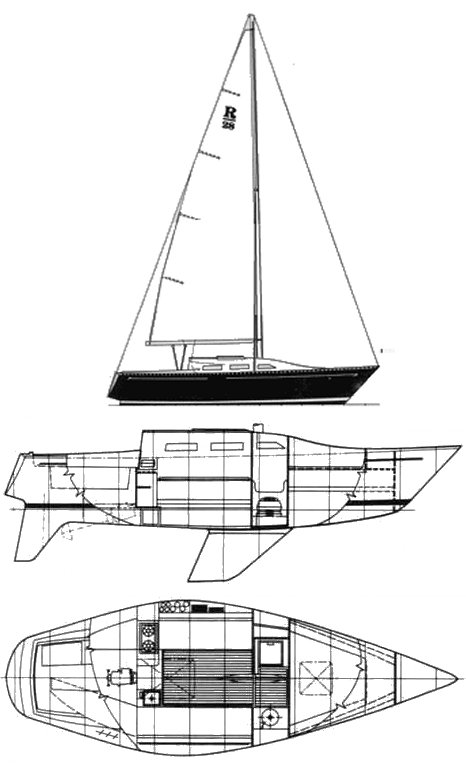

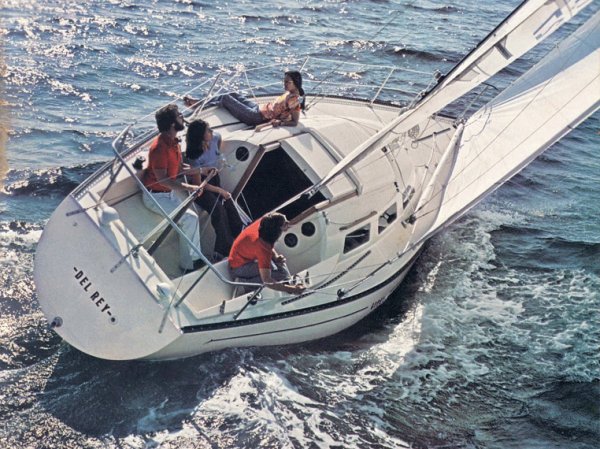

RANGER 28
Built by Bangor Punta(USA)
• Designed by Gary Mull
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1976
Last Built:
1978
Number Built:
130
Dimensions
Length Overall (LOA):
8.53 m
Length Waterline (LWL):
6.61 m
Beam:
2.92 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
2,305 kg
Ballast:
1,266 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
20.07 m²
Mainsail Area:
16.10 m²
Sail Area:
36.16 m²
Sail Area (reported):
36.14 m²
I (Fore Triangle Height):
10.97 m
J (Fore Triangle Base):
3.66 m
P (Mainsail Hoist):
9.60 m
E (Boom Length):
3.35 m
Est. Forestay Length:
11.57 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Water Capacity:
49 L
Performance Ratios
Hull Speed:
6.24 knots
SA/Displacement (Calc):
21.13
SA/Displacement (Reported):
21.12
Ballast/Disp Ratio:
54.95%
Displacement/Length:
222.91
Comfort Ratio:
16.42
Capsize Screening:
2.23
S-Number:
2.86
Immersion:
132 kg/cm
Notes
Though the earlier RANGER 29 (1971) was also designed by Mull, the RANGER 28 with it's clear IOR influence, is a completely new design.
