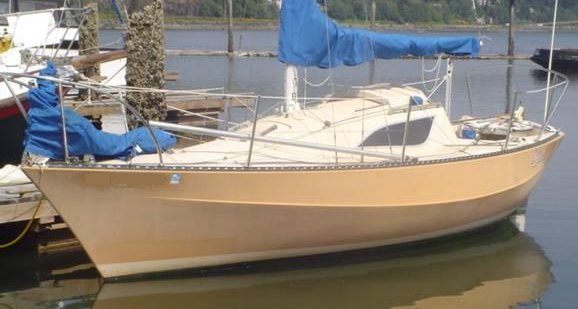

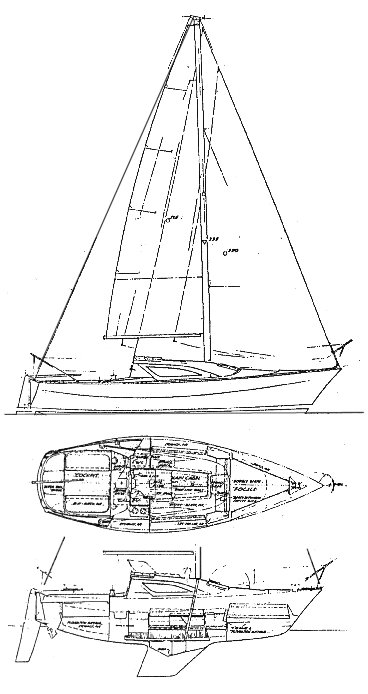

RANGER 24
Built by Ranger Fiberglass Boats (USA)
• Designed by Raymond H. Richards
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
First Built:
1974
Dimensions
Length Overall (LOA):
7.29 m
Length Waterline (LWL):
6.10 m
Beam:
2.54 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
1,429 kg
Ballast:
635 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
13.47 m²
Mainsail Area:
8.71 m²
Sail Area:
22.18 m²
Sail Area (reported):
22.20 m²
I (Fore Triangle Height):
8.84 m
J (Fore Triangle Base):
3.05 m
P (Mainsail Hoist):
7.62 m
E (Boom Length):
2.29 m
Est. Forestay Length:
9.35 m
Engine & Systems
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calc):
17.82
SA/Displacement (Reported):
17.84
Ballast/Disp Ratio:
44.44%
Displacement/Length:
175.78
Comfort Ratio:
13.65
Capsize Screening:
2.28
S-Number:
3.11
Immersion:
106 kg/cm
