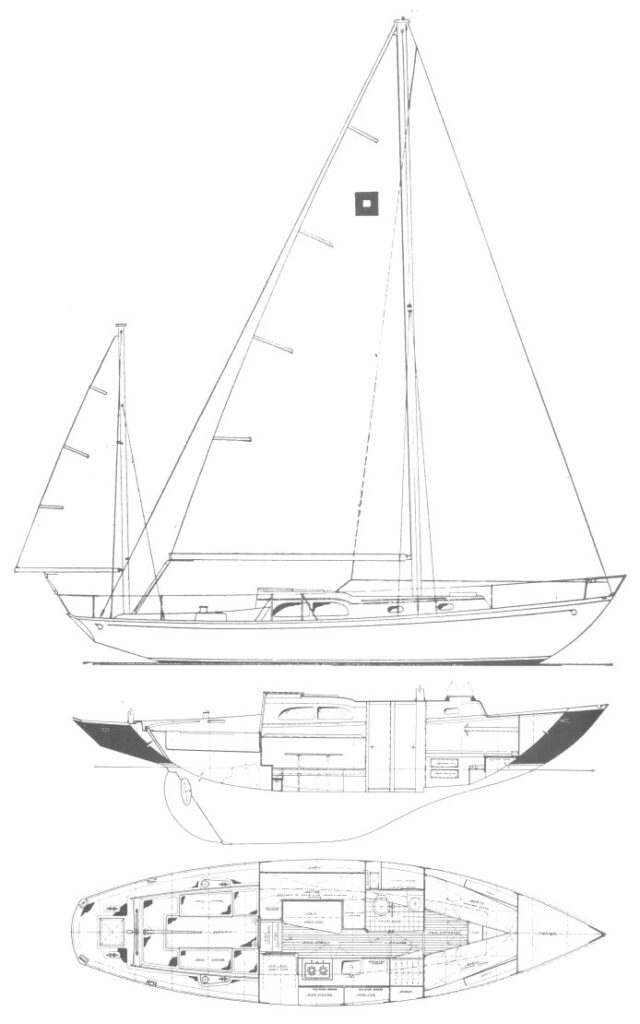

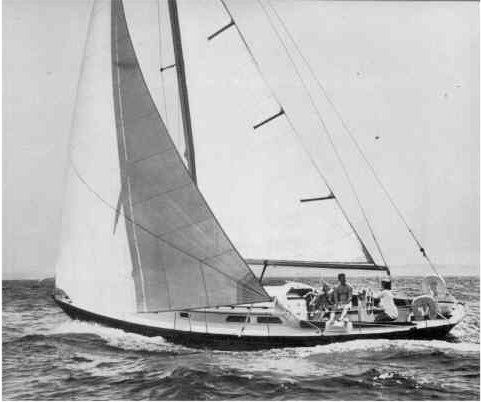

PILOT 35 (HINCKLEY)
Built by Henry R. Hinckley & Co.(USA)
• Designed by Sparkman & Stephens
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
First Built:
1962
Last Built:
1975
Number Built:
117
Dimensions
Length Overall (LOA):
10.90 m
Length Waterline (LWL):
7.62 m
Beam:
2.90 m
Draft (Max):
1.52 m
Weight & Ballast
Displacement:
6,214 kg
Ballast:
2,087 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
25.86 m²
Mainsail Area:
25.26 m²
Sail Area:
51.12 m²
Sail Area (reported):
51.10 m²
I (Fore Triangle Height):
12.27 m
J (Fore Triangle Base):
4.22 m
P (Mainsail Hoist):
10.69 m
E (Boom Length):
4.72 m
Est. Forestay Length:
12.97 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
4-107 FWC
Engine Power:
35 HP
Performance Ratios
Hull Speed:
6.70 knots
SA/Displacement (Calc):
15.43
SA/Displacement (Reported):
15.42
Ballast/Disp Ratio:
33.58%
Displacement/Length:
391.43
Comfort Ratio:
37.39
Capsize Screening:
1.59
S-Number:
1.09
Immersion:
152 kg/cm
Notes
S&S design #1727. This, the third generation PILOT, was designed specifically for Hinckley to be built of fiberglass.
