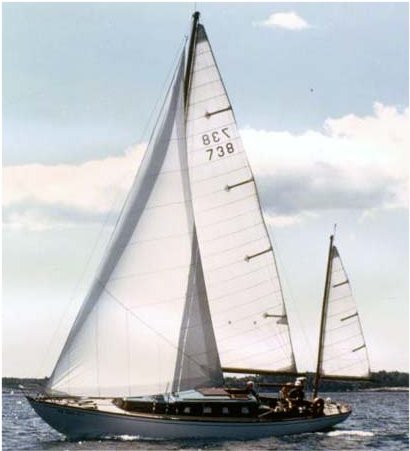

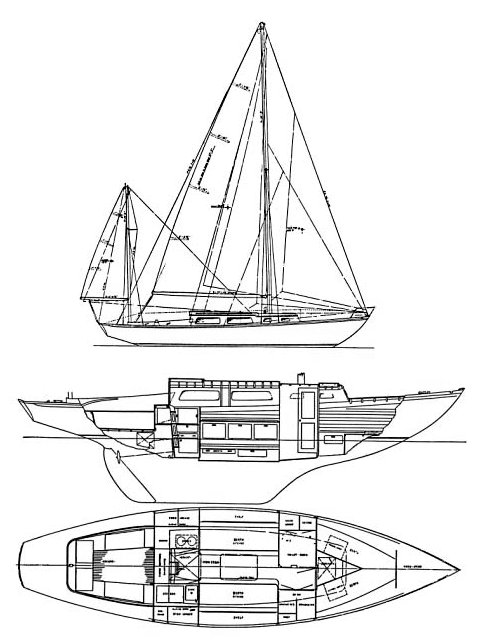

OHLSON 36
Built by Ohlson Brothers
• Designed by Einar Ohlson
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin Keel
Rigging Type:
Masthead Sloop
First Built:
1958
Dimensions
Length Overall (LOA):
10.97 m
Length Waterline (LWL):
7.62 m
Beam:
2.84 m
Draft (Max):
1.85 m
Weight & Ballast
Displacement:
6,260 kg
Ballast:
2,268 kg
Sail Plan
Foresail Area:
24.15 m²
Mainsail Area:
25.61 m²
Sail Area:
49.76 m²
I (Fore Triangle Height):
12.19 m
J (Fore Triangle Base):
3.96 m
P (Mainsail Hoist):
10.67 m
E (Boom Length):
4.80 m
Est. Forestay Length:
12.82 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Gas
Performance Ratios
Hull Speed:
6.70 knots
SA/Displacement (Calc):
14.95
Ballast/Disp Ratio:
36.23%
Displacement/Length:
394.29
Comfort Ratio:
38.48
Capsize Screening:
1.56
S-Number:
1.05
Immersion:
149 kg/cm
Notes
Also available with a yawl rig. An updated MKII version was introduced in 1965.
