NORLIN 34 MK II
Built by Solna Marine (SWE)
• Designed by Peter Norlin
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1975
Dimensions
Length Overall (LOA):
10.48 m
Length Waterline (LWL):
8.60 m
Beam:
3.37 m
Draft (Max):
1.99 m
Weight & Ballast
Displacement:
6,500 kg
Ballast:
2,400 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
32.36 m²
Mainsail Area:
21.69 m²
Sail Area:
54.05 m²
Sail Area (reported):
54.07 m²
I (Fore Triangle Height):
14.39 m
J (Fore Triangle Base):
4.50 m
P (Mainsail Hoist):
12.40 m
E (Boom Length):
3.50 m
Est. Forestay Length:
15.07 m
Engine & Systems
Performance Ratios
Hull Speed:
7.12 knots
SA/Displacement (Calc):
15.84
SA/Displacement (Reported):
15.84
Ballast/Disp Ratio:
36.92%
Displacement/Length:
284.96
Comfort Ratio:
30.00
Capsize Screening:
1.82
S-Number:
1.77
Immersion:
199 kg/cm
Notes

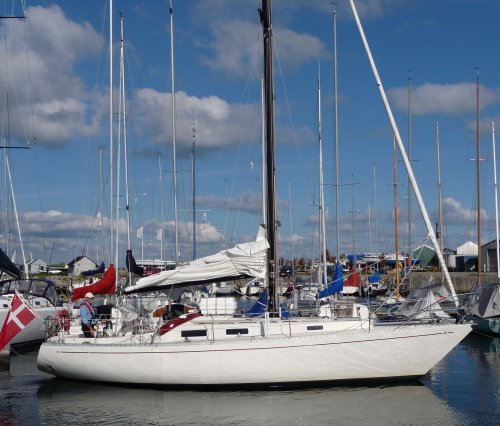

Thanks to Paul Keller for photo and updated info on this yacht.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
