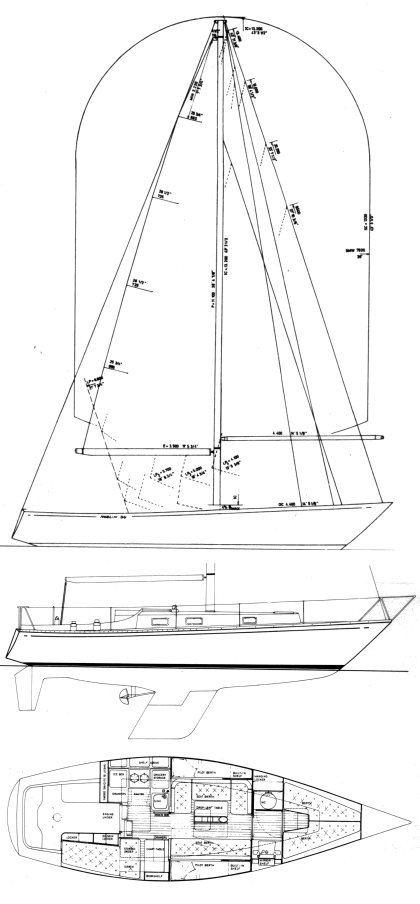

NORLIN 34 MK I
Built by Solna Marine (SWE)
• Designed by Peter Norlin
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1972
Number Built:
120
Dimensions
Length Overall (LOA):
10.26 m
Length Waterline (LWL):
8.15 m
Beam:
3.37 m
Draft (Max):
1.92 m
Weight & Ballast
Displacement:
5,897 kg
Ballast:
2,302 kg
Sail Plan
Foresail Area:
29.09 m²
Mainsail Area:
19.42 m²
Sail Area:
48.51 m²
Sail Area (reported):
48.50 m²
I (Fore Triangle Height):
13.23 m
J (Fore Triangle Base):
4.40 m
P (Mainsail Hoist):
11.10 m
E (Boom Length):
3.50 m
Est. Forestay Length:
13.94 m
Engine & Systems
Engine Make:
Farrymann
Engine Type:
Diesel
Engine Model:
LA
Engine Power:
12 HP
Fuel Capacity:
38 L
Performance Ratios
Hull Speed:
6.93 knots
SA/Displacement (Calc):
15.16
SA/Displacement (Reported):
15.16
Ballast/Disp Ratio:
39.04%
Displacement/Length:
303.20
Comfort Ratio:
28.42
Capsize Screening:
1.88
S-Number:
1.58
Immersion:
189 kg/cm
Notes
Hulls molded by Älvdalen Plastic (SWE). The MkII version was introduced in 1975 which was longer and had a taller rig.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
