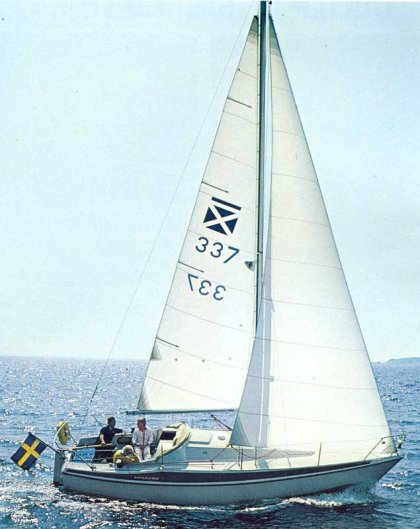

MAXI 84
Built by Maxi Yachts / Börjesson Brothers
• Designed by Pelle Petterson
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
First Built:
1977
Last Built:
1983
Number Built:
1350
Dimensions
Length Overall (LOA):
8.54 m
Length Waterline (LWL):
7.20 m
Beam:
2.95 m
Draft (Max):
1.50 m
Headroom:
1.84 m
Max Height:
11.65 m
Weight & Ballast
Displacement:
3,000 kg
Ballast:
1,350 kg
Ballast Type:
Iron

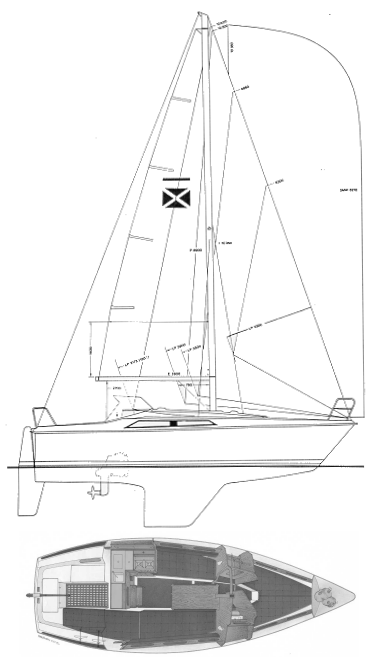

Sail Plan
Foresail Area:
18.98 m²
Mainsail Area:
13.66 m²
Sail Area:
32.64 m²
Sail Area (reported):
36.00 m²
I (Fore Triangle Height):
11.00 m
J (Fore Triangle Base):
3.45 m
P (Mainsail Hoist):
9.75 m
E (Boom Length):
2.80 m
Est. Forestay Length:
11.53 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD7A/110S
Engine Power:
13 HP
Fuel Capacity:
34 L
Water Capacity:
90 L
Performance Ratios
Hull Speed:
6.51 knots
SA/Displacement (Calc):
16.00
SA/Displacement (Reported):
17.65
Ballast/Disp Ratio:
45.00%
Displacement/Length:
224.07
Comfort Ratio:
19.93
Capsize Screening:
2.07
S-Number:
2.33
Immersion:
146 kg/cm
Notes
Specs are from the builder's brochure. Some owners have measured...
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
