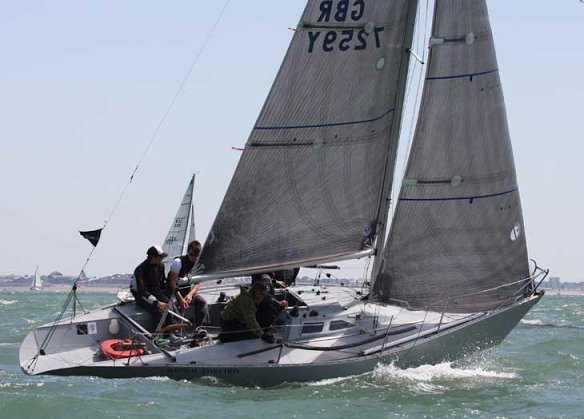

MAGNUM EVOLUTION QUARTER TON
Built by Evolution Yachts (UK)
• Designed by Julian Everitt
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
First Built:
1976
Last Built:
1981
Number Built:
9
Dimensions
Length Overall (LOA):
8.35 m
Length Waterline (LWL):
6.25 m
Beam:
2.74 m
Draft (Max):
1.52 m
Weight & Ballast
Displacement:
1,818 kg
Ballast:
544 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
11.25 m²
Mainsail Area:
14.23 m²
Sail Area:
25.48 m²
Sail Area (reported):
25.46 m²
I (Fore Triangle Height):
7.77 m
J (Fore Triangle Base):
2.90 m
P (Mainsail Hoist):
8.56 m
E (Boom Length):
3.32 m
Est. Forestay Length:
8.29 m
Engine & Systems
Performance Ratios
Hull Speed:
6.07 knots
SA/Displacement (Calc):
17.44
SA/Displacement (Reported):
17.43
Ballast/Disp Ratio:
29.95%
Displacement/Length:
207.64
Comfort Ratio:
14.70
Capsize Screening:
2.27
S-Number:
2.67
Immersion:
118 kg/cm
Notes
Quarter Ton design that is still raced successfully in the revival Quarter Ton Cup.
