LANCER 36
Built by Lancer Yacht Corp. (USA)
• Designed by Bill Lee/Bruce King
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1973
Last Built:
1985
Dimensions
Length Overall (LOA):
11.02 m
Length Waterline (LWL):
8.84 m
Beam:
3.58 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
4,763 kg
Ballast:
1,814 kg
Sail Plan
Foresail Area:
31.22 m²
Mainsail Area:
20.62 m²
Sail Area:
51.84 m²
Sail Area (reported):
51.84 m²
I (Fore Triangle Height):
12.80 m
J (Fore Triangle Base):
4.88 m
P (Mainsail Hoist):
11.28 m
E (Boom Length):
3.66 m
Est. Forestay Length:
13.70 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
27 HP
Fuel Capacity:
114 L
Water Capacity:
189 L
Performance Ratios
Hull Speed:
7.22 knots
SA/Displacement (Calc):
18.68
SA/Displacement (Reported):
18.68
Ballast/Disp Ratio:
38.10%
Displacement/Length:
192.20
Comfort Ratio:
19.57
Capsize Screening:
2.15
S-Number:
3.00
Immersion:
217 kg/cm
Notes

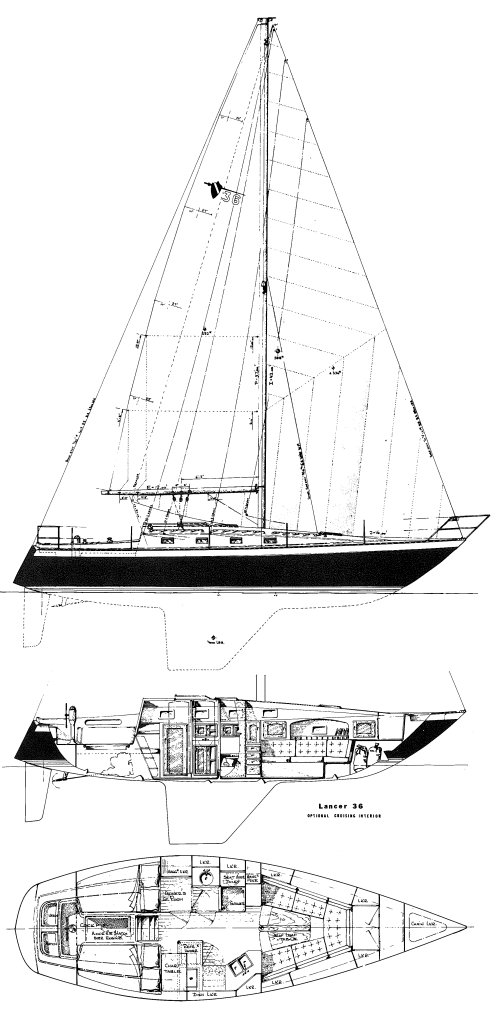

The prototype of the Lancer 36 was the successful west coast racer 'Chutzpah' which won the Transpac in 1973 and 1975. A number of different interior and rig options were available. (displayed here with opt. cruising interior).
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
