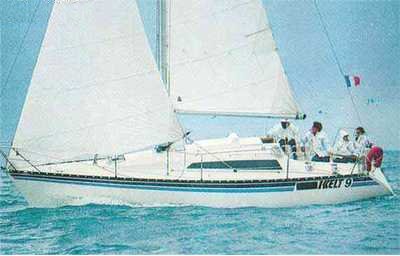

KELT 9M
Built by Kelt Marine
• Designed by Philippe Briand Yacht Design
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1980
Last Built:
1984
Dimensions
Length Overall (LOA):
9.03 m
Length Waterline (LWL):
7.49 m
Beam:
3.10 m
Draft (Max):
1.78 m
Weight & Ballast
Displacement:
3,436 kg
Ballast:
801 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
21.53 m²
Mainsail Area:
17.56 m²
Sail Area:
39.09 m²
Sail Area (reported):
39.11 m²
I (Fore Triangle Height):
12.28 m
J (Fore Triangle Base):
3.51 m
P (Mainsail Hoist):
10.67 m
E (Boom Length):
3.29 m
Est. Forestay Length:
12.77 m
Engine & Systems
Performance Ratios
Hull Speed:
6.64 knots
SA/Displacement (Calc):
17.51
SA/Displacement (Reported):
17.52
Ballast/Disp Ratio:
23.30%
Displacement/Length:
227.74
Comfort Ratio:
20.43
Capsize Screening:
2.07
S-Number:
2.45
Immersion:
160 kg/cm
Notes
The Kelt 9.0 was first built in France, and then in Ontario, Canada.
