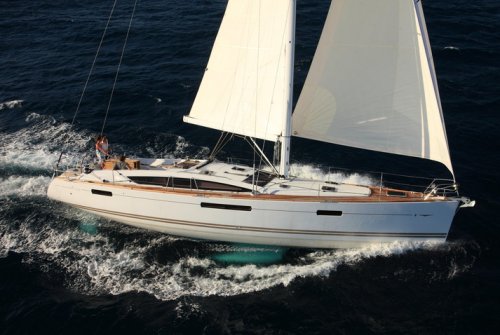

JEANNEAU YACHTS 57
Built by Jeanneau (FRA)
• Designed by Philippe Briand Yacht Design
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
2009
Last Built:
2015
Dimensions
Length Overall (LOA):
17.78 m
Length Waterline (LWL):
15.34 m
Beam:
4.98 m
Draft (Max):
2.08 m
Weight & Ballast
Displacement:
27,129 kg
Ballast:
6,100 kg
Sail Plan
Foresail Area:
69.80 m²
Mainsail Area:
62.44 m²
Sail Area:
132.23 m²
Sail Area (reported):
132.20 m²
I (Fore Triangle Height):
20.98 m
J (Fore Triangle Base):
6.65 m
P (Mainsail Hoist):
19.58 m
E (Boom Length):
6.38 m
Est. Forestay Length:
22.01 m
Engine & Systems
Engine Make:
VW Marine
Engine Type:
Diesel
Engine Model:
TDI 140-5
Engine Power:
140 HP
Fuel Capacity:
435 L
Water Capacity:
931 L
Performance Ratios
Hull Speed:
9.51 knots
SA/Displacement (Calc):
14.96
SA/Displacement (Reported):
14.96
Ballast/Disp Ratio:
22.48%
Displacement/Length:
209.43
Comfort Ratio:
42.51
Capsize Screening:
1.67
S-Number:
2.36
Immersion:
524 kg/cm
Notes
Draft- deep keel: 8.16'/2.49m
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
