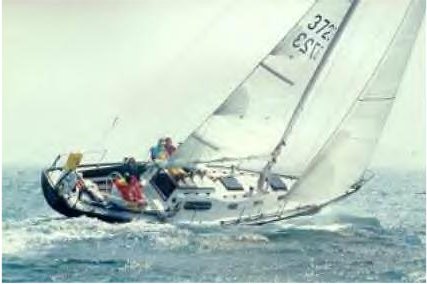

JAVELIN 38 (TRIPP)
Built by G. DeVries Lentsch, Jr., (NL)
• Designed by William Tripp Jr.
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin Keel
Rigging Type:
Masthead Sloop
First Built:
1960
Last Built:
1966
Number Built:
25
Dimensions
Length Overall (LOA):
11.53 m
Length Waterline (LWL):
7.62 m
Beam:
3.05 m
Draft (Max):
1.60 m
Weight & Ballast
Displacement:
7,257 kg
Ballast:
2,159 kg
Ballast Type:
Lead

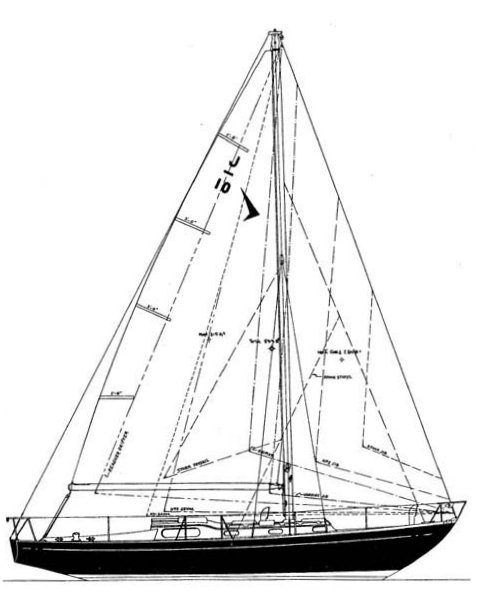

Sail Plan
Foresail Area:
25.97 m²
Mainsail Area:
27.64 m²
Sail Area:
53.61 m²
Sail Area (reported):
53.61 m²
I (Fore Triangle Height):
12.39 m
J (Fore Triangle Base):
4.19 m
P (Mainsail Hoist):
10.67 m
E (Boom Length):
5.18 m
Est. Forestay Length:
13.08 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
20 HP
Fuel Capacity:
132 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
6.70 knots
SA/Displacement (Calc):
14.59
SA/Displacement (Reported):
14.59
Ballast/Disp Ratio:
29.75%
Displacement/Length:
457.14
Comfort Ratio:
39.91
Capsize Screening:
1.59
S-Number:
0.78
Immersion:
160 kg/cm
Notes
Most were imported to the US by Seafarer Yachts. It is thought that about 25 were built. Some were rigged as yawls (SA 633 sf.).
