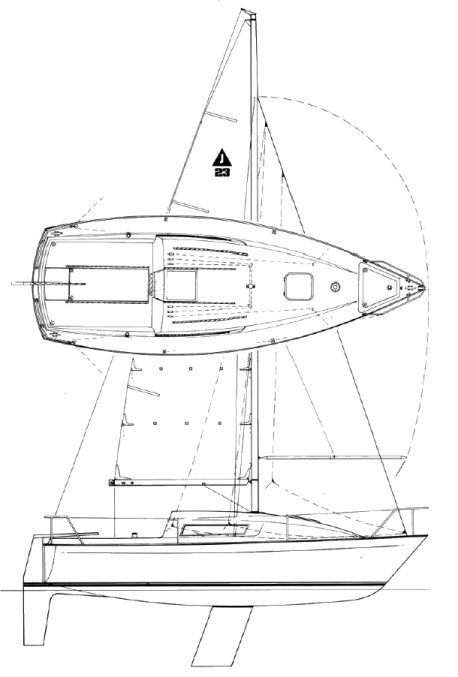

JAGUAR 23
Built by Canvey Yacht Builders (UK)
• Designed by John Mullins
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
First Built:
1980
Last Built:
1985
Dimensions
Length Overall (LOA):
7.01 m
Length Waterline (LWL):
6.10 m
Beam:
2.49 m
Draft (Max):
1.40 m
Draft (Min):
0.30 m
Headroom:
1.75 m
Max Height:
9.14 m
Weight & Ballast
Displacement:
1,451 kg
Ballast:
455 kg
Ballast Type:
Iron
Sail Plan
Sail Area (reported):
23.60 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Reported):
18.76
Ballast/Disp Ratio:
31.34%
Displacement/Length:
178.57
Comfort Ratio:
14.44
Capsize Screening:
2.22
Immersion:
104 kg/cm
Notes
A follow up to the JAGUAR 21, the 23 proved to be far less popular and was soon replaced with the JAGUAR 24.
