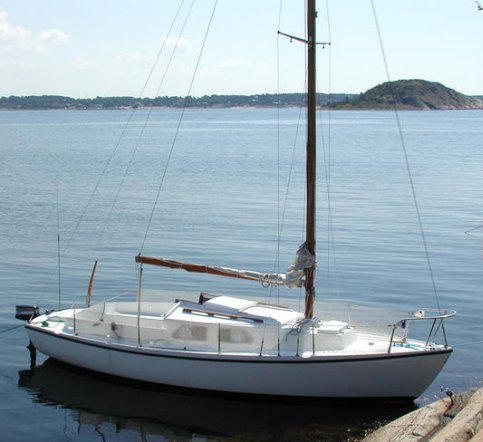

IW-23
Built by IW-Varvet
• Designed by Ivar Åkesson
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1964
Last Built:
1969
Number Built:
215
Dimensions
Length Overall (LOA):
6.85 m
Length Waterline (LWL):
6.00 m
Beam:
2.25 m
Draft (Max):
1.10 m
Weight & Ballast
Displacement:
1,500 kg
Ballast:
630 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
8.54 m²
Mainsail Area:
9.85 m²
Sail Area:
18.38 m²
Sail Area (reported):
18.21 m²
I (Fore Triangle Height):
8.30 m
J (Fore Triangle Base):
2.06 m
P (Mainsail Hoist):
7.30 m
E (Boom Length):
2.70 m
Est. Forestay Length:
8.55 m
Engine & Systems
Performance Ratios
Hull Speed:
5.94 knots
SA/Displacement (Calc):
14.30
SA/Displacement (Reported):
14.17
Ballast/Disp Ratio:
42.00%
Displacement/Length:
193.69
Comfort Ratio:
17.37
Capsize Screening:
1.98
S-Number:
2.44
Immersion:
93 kg/cm
Notes
Originally called F 18. (1962?) (RORC class 5)
