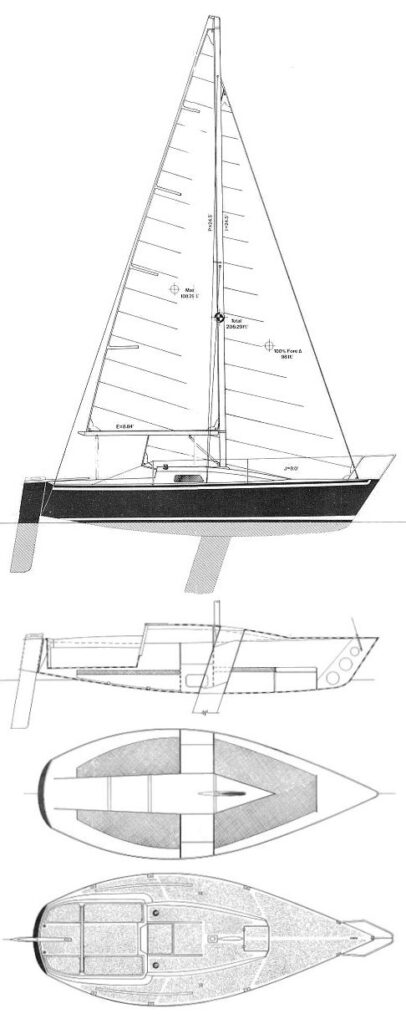

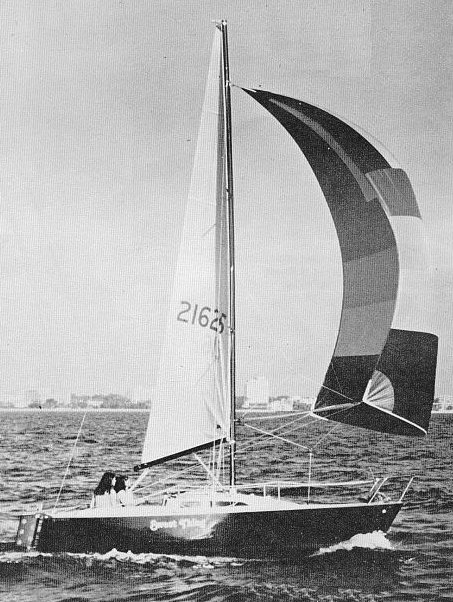

IRWIN MINI-TON
Built by Irwin Yachts (USA)
• Designed by Irwin/Rogers
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
First Built:
1978
Dimensions
Length Overall (LOA):
6.34 m
Length Waterline (LWL):
5.03 m
Beam:
2.44 m
Draft (Max):
1.37 m
Draft (Min):
0.24 m
Weight & Ballast
Displacement:
862 kg
Ballast:
349 kg
Sail Plan
Foresail Area:
9.10 m²
Mainsail Area:
10.06 m²
Sail Area:
19.16 m²
Sail Area (reported):
19.14 m²
I (Fore Triangle Height):
7.47 m
J (Fore Triangle Base):
2.44 m
P (Mainsail Hoist):
7.47 m
E (Boom Length):
2.69 m
Est. Forestay Length:
7.85 m
Engine & Systems
Performance Ratios
Hull Speed:
5.44 knots
SA/Displacement (Calc):
21.56
SA/Displacement (Reported):
21.53
Ballast/Disp Ratio:
40.53%
Displacement/Length:
188.82
Comfort Ratio:
10.34
Capsize Screening:
2.59
S-Number:
3.37
Immersion:
84 kg/cm
Notes
The IRWIN MINI-TON (<16.5' IOR) is thought to be similar to the IRWIN FREE SPIRIT.
